Dashboard Mouldings

Location Description Type Basic value Tolerance
Screws securing air vent on passenger's side to dashboard moulding on passenger's side Item 1 Tightening torque 1.2 Nm (0.75 ftlb.)

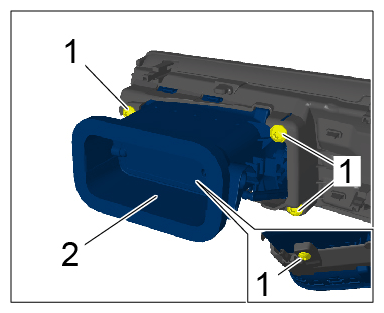

G15161897Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air vent on passenger's side
