Preparing Component - New Component Without Adhesive Bead

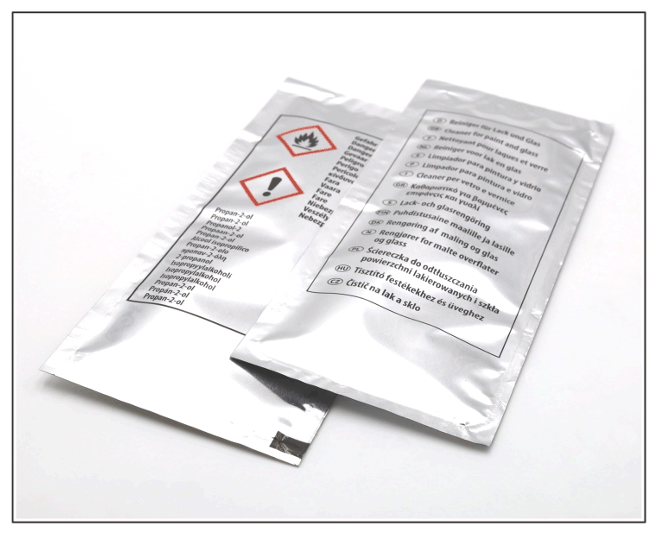

  1. Clean the bonding area on the component using a cleaning cloth from the adhesive set.
    G15160846Courtesy of AUDI OF AMERICA, LLC

    Cleaning cloth

  2. Let cleaning agent air dry for 10 minutes.
    G15160847Courtesy of AUDI OF AMERICA, LLC

    Cleaning agent drying time

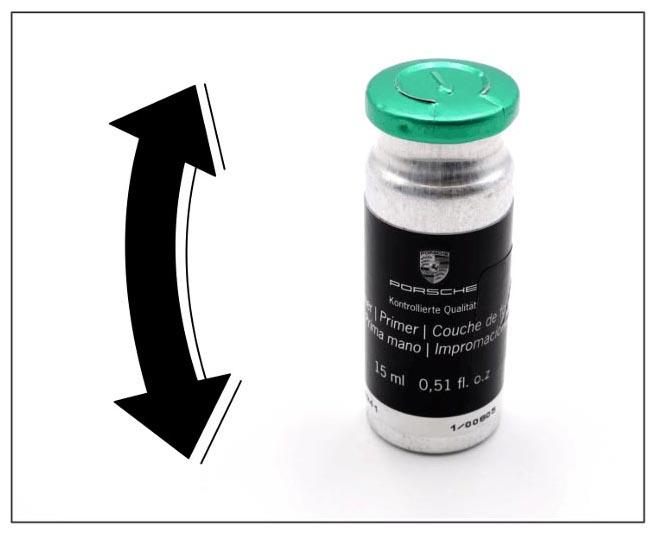

  3. Shake primer for 2 minutes. The steel ball must be clearly heard and felt moving inside the primer cartridge.
    G15160848Courtesy of AUDI OF AMERICA, LLC

    Primer

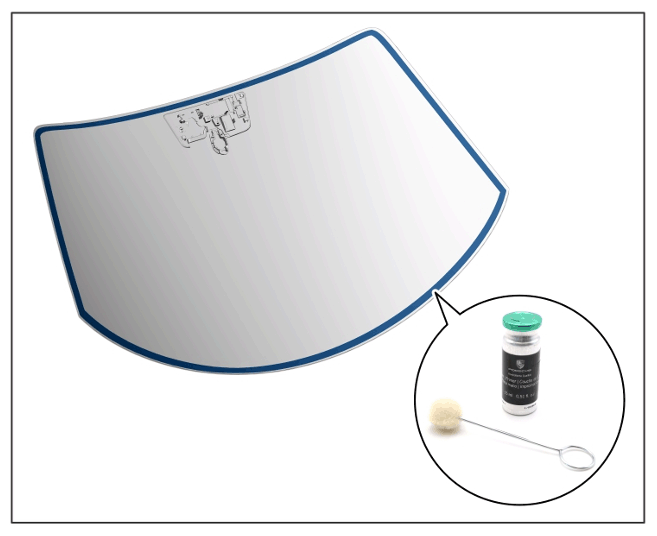

  4. Apply a single coat of primer from the adhesive set in the bonding area on the component in one movement using the applicator brush.
    G15160849Courtesy of AUDI OF AMERICA, LLC

    Primer component

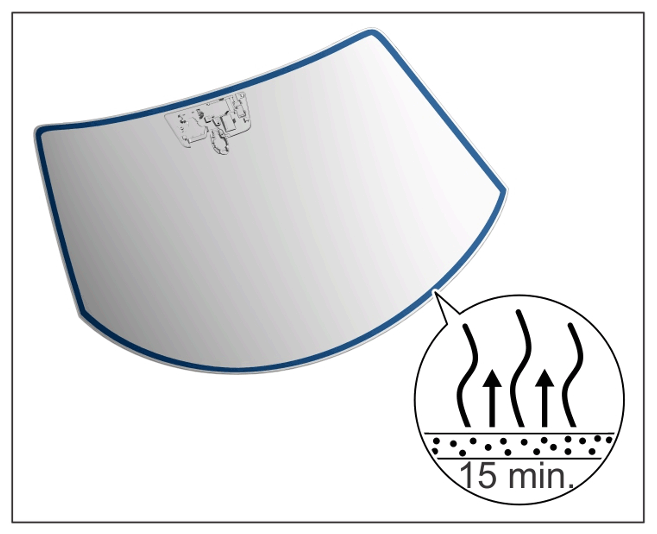

  5. Let air dry for 15 minutes.
    G15160850Courtesy of AUDI OF AMERICA, LLC

    Primer drying time

  6. If a drying time of 8 hours is exceeded:  Primer may be applied again only once and within 96 hours  of applying the first coat of primer. Primed bonding surfaces must be protected from external influences and dirt during this period. Let primer air dry for 15 minutes again.
