Three-Point Seat Belt
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

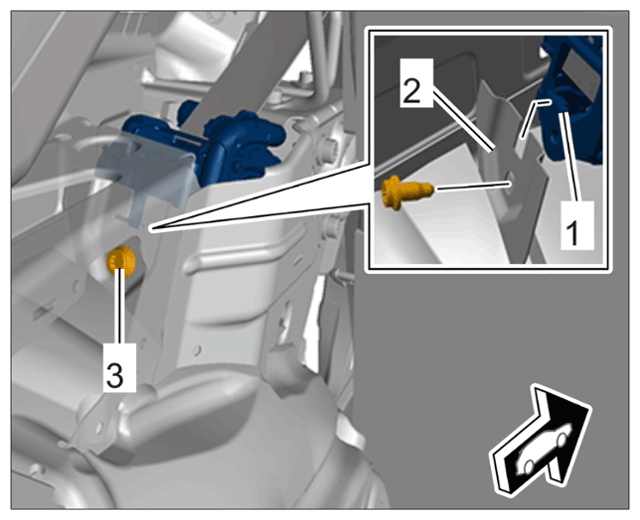

| Fastening screw securing seat-belt pretensioner to body | Replace Item 3 screw | Tightening torque | 50 Nm (36.9 ftlb.) | |
|
Seat-belt pretensioners |
||||

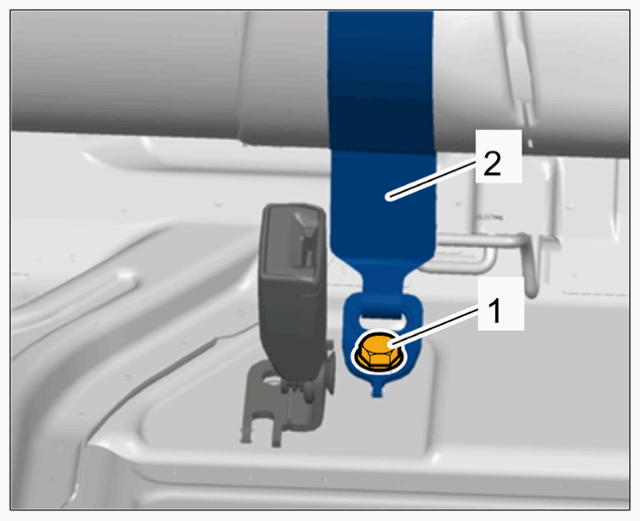

| Fastening screw, safety belt mount to body | Replace Item 1 screw | Tightening torque | 50 Nm (36.9 ftlb.) | |
|
Seat belt mount |
||||
| Fastening screw belt end fitting rear centre on body | Replace Item 1 screw | Tightening torque | 55 Nm (40.6 ftlb.) | |
|
Centre seat belt mount on body |
||||

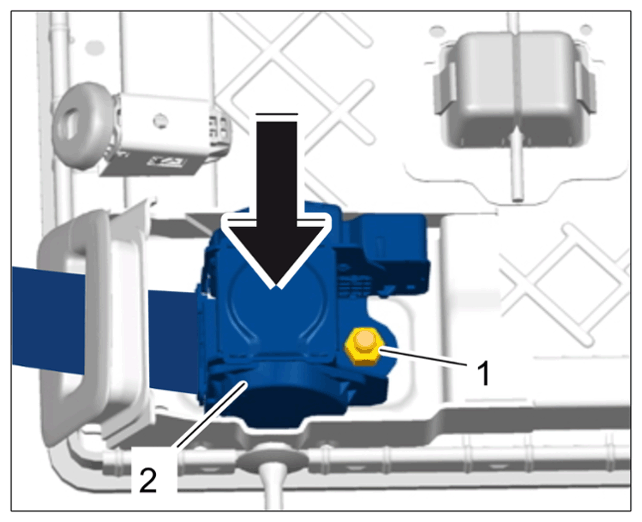

| Fastening nut seat belt tensioner rear centre on seat backrest | Use screw locking agent | Tightening torque | 50 Nm (36.9 ftlb.) | |
|
Seat-belt pretensioners |
||||
