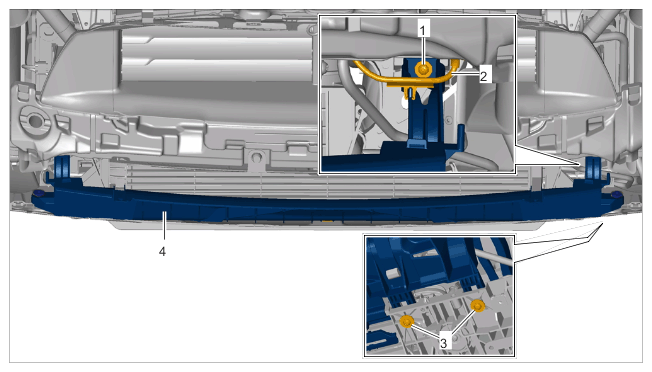

| Screws securing pedestrian protection to lock carrier, top |
Item 1 |
Tightening torque |
4.5 Nm (3.25 ftlb.) |
|
 Courtesy of AUDI OF AMERICA, LLC
Pedestrian protection |
| Screws securing pedestrian protection to lock carrier, bottom |
Item 3 |
Tightening torque |
3 Nm (2 ftlb.) |
|
 Courtesy of AUDI OF AMERICA, LLC
Pedestrian protection |
