Passenger'S Airbag Unit
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

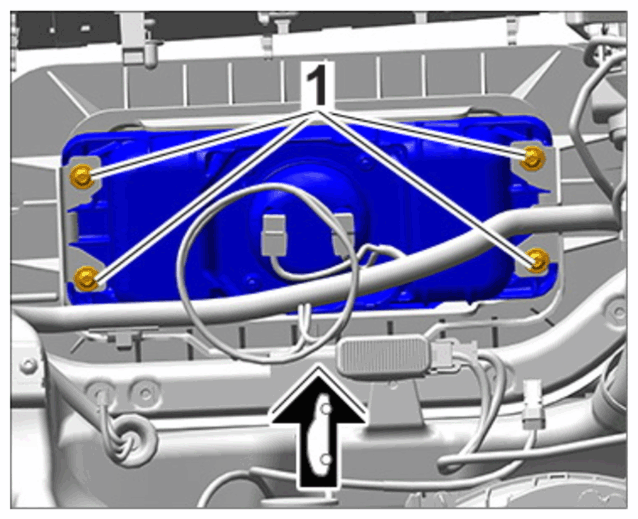

| Fastening screws securing passenger airbag unit to retaining frame | Item 1 | Tightening torque | 9 Nm (6.5 ftlb.) | |
|
Passenger airbag unit |
||||

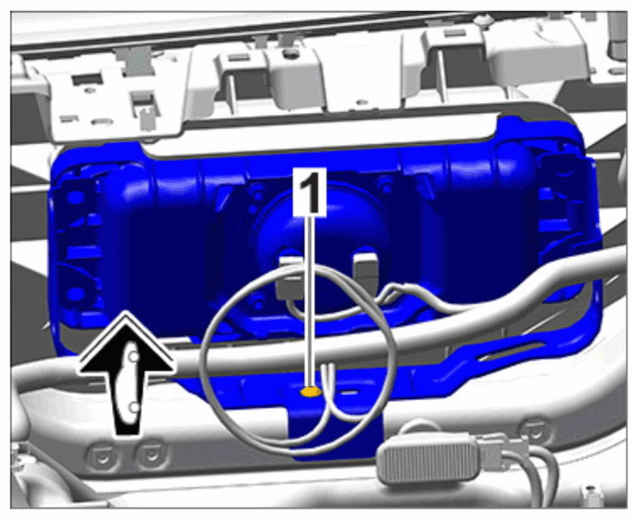

| Fastening screw securing passenger airbag unit holder to dashboard | Item 1 | Tightening torque | 4.5 Nm (3.25 ftlb.) | |
|
Passenger airbag unit |
||||
