6X Body-Equipment Outside-General -- 95B - MACAN (95B)
>>
WM, 6X00IN Technical Values
>>
69 - Occupant Protection
>>
Head Airbag
Head Airbag
Location
Description
Type
Basic value
Tolerance

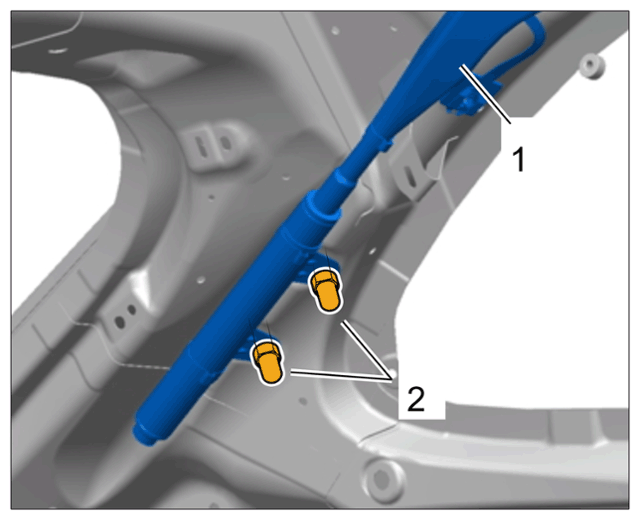

Fastening nut securing head airbag to C-pillar
Item 2
Tightening torque
10 Nm (7.5 ftlb.)
Courtesy of AUDI OF AMERICA, LLC
Fastening nut
Courtesy of AUDI OF AMERICA, LLC
