6X Body-Equipment Outside-General -- 95B - MACAN (95B)
>>
WM, 6X00IN Technical Values
>>
69 - Occupant Protection
>>
Airbag Triggering Unit
Airbag Triggering Unit
Location
Description
Type
Basic value
Tolerance
Nuts securing airbag triggering unit to body
Item 1
Tightening torque
9 Nm (6.5 ftlb.)
Courtesy of AUDI OF AMERICA, LLC

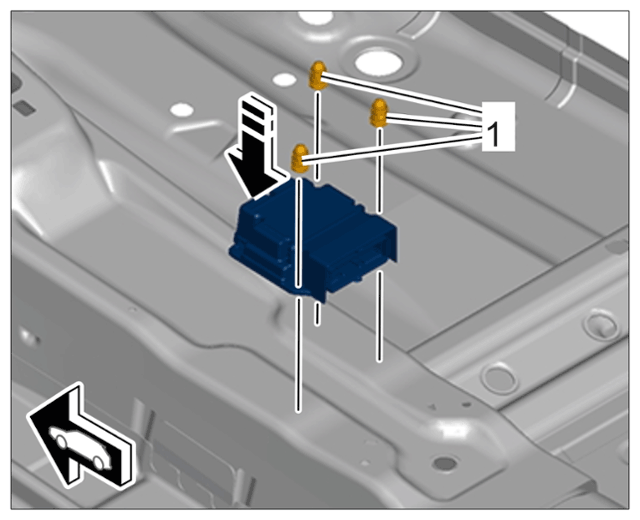

Airbag triggering unit
Courtesy of AUDI OF AMERICA, LLC
