Front Bumper
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Screws securing front bumper to carrier | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | |
|
Front bumper |
||||

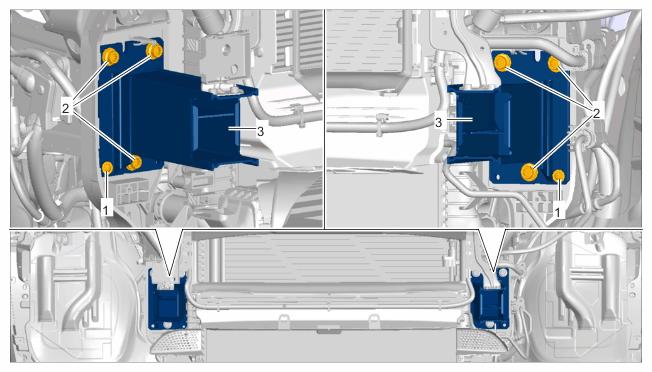

| Screw securing carrier to body | Item 1 | Tightening torque | 4.5 Nm (3.25 ftlb.) | |
|
Front carrier |
||||
| Screws securing carrier to body | Item 2 | Tightening torque | 55 Nm (41 ftlb.) | |
|
Front carrier |
||||
