Front Apron
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Screw securing front apron to inner lock carrier | Item 2 | Tightening torque | 8 Nm (6 ftlb.) | |
|

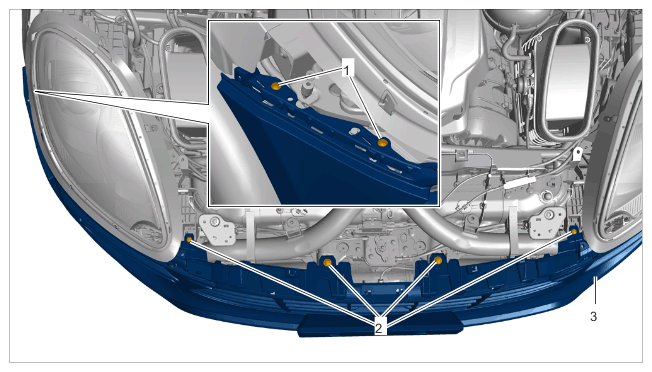

Mounting for front apron at the top and sides |
||||
| Screw securing front apron to front retaining strip | Item 1 | Tightening torque | 2 Nm (1.5 ftlb.) | |
|
Mounting for front apron at the top and sides |
||||
| Screw securing front apron to lower lock carrier | Item 1 | Tightening torque | 2 Nm (1.5 ftlb.) | |
|

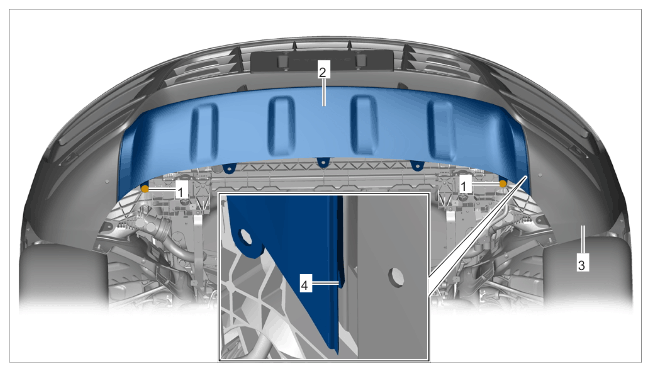

Front spoiler |
||||
| Screw securing front apron to lock carrier at the side | Item 3 | Tightening torque | 2 Nm (1.5 ftlb.) | |
|

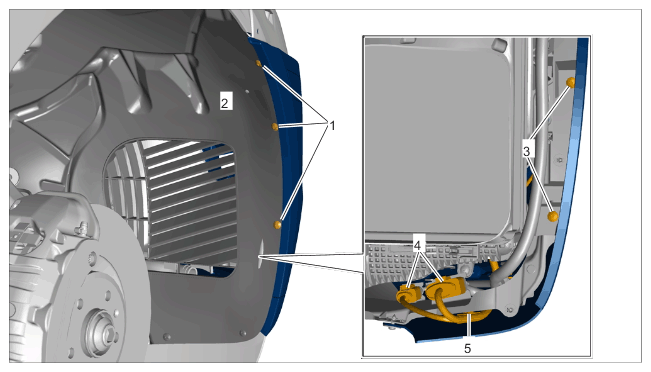

Mounting for front apron in wheel housing |
||||
