Roof Assembly (Panoramic Roof)
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

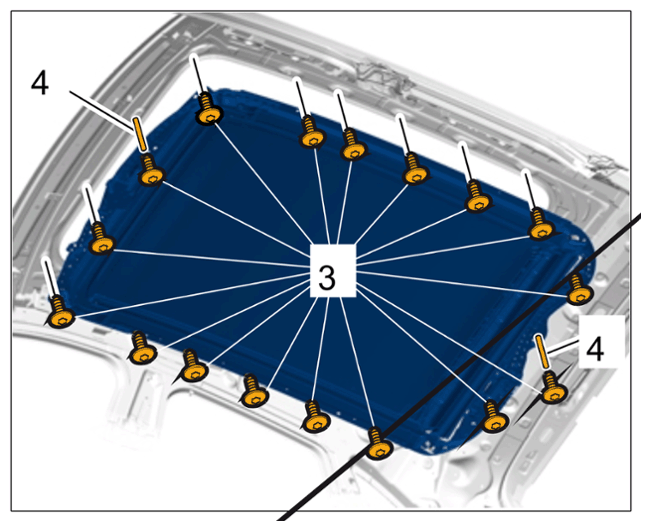

| Screws securing roof assembly (panoramic roof) to roof | Item 3 | Tightening torque | 8 Nm (6 ftlb.) | |
|
Screws |
||||

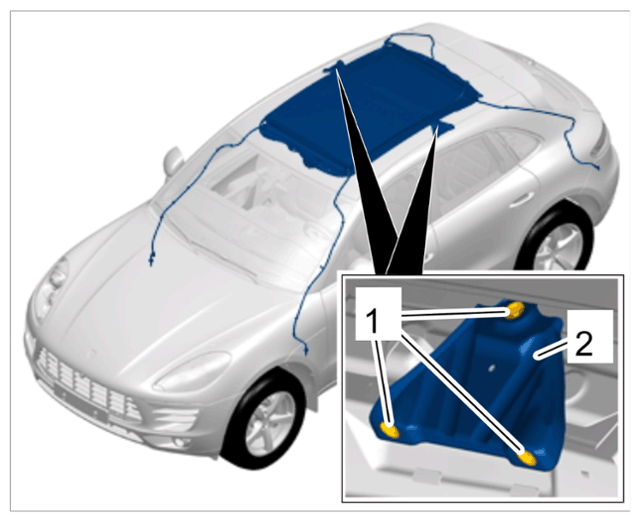

| Screws securing roof console to roof | Item 1 | Tightening torque | 8 Nm (6 ftlb.) | |
|
Removing console |
||||

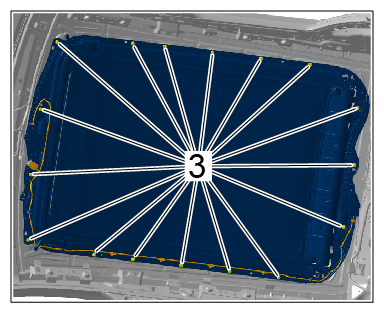

| Securing roof assembly (panoramic roof) to body | Diameter | 10 mm | ||
|
Positioning roof assembly |
||||
