Removing Air Guide For Brake Disc

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Information

• The clamp for the brake-disc air guide cannot be removed without damaging it irreparably.
• Replace clip after removal (spare part available in the Porsche spare parts information).

1. Remove air guide for brake disc -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

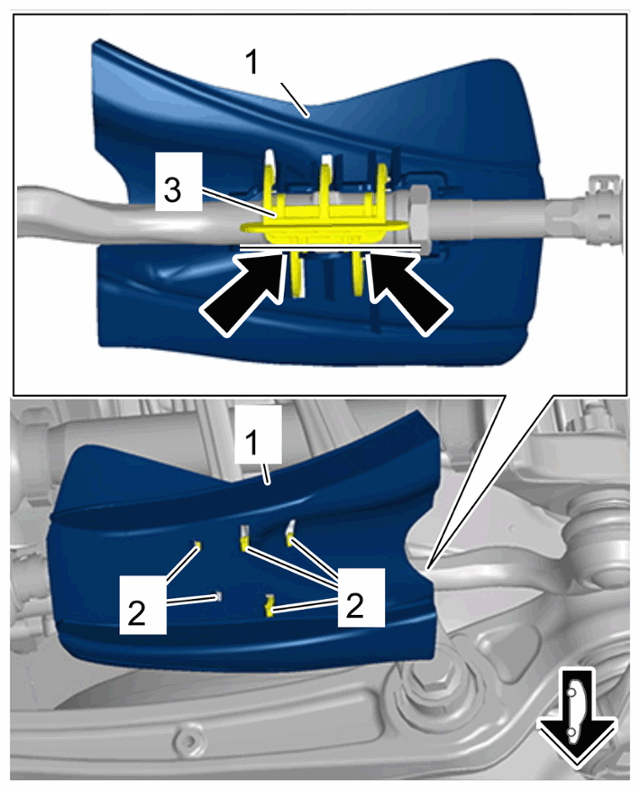

   Brake disc air guide

   1. 1.1 Cut through the lower arms of the clamp -2-  at the marked positions -Arrows-  using side cutters.
   2. 1.2 Remove air guide for brake disc -1-  by pulling it forward off the tie rod.
