Installing Mounting Saddle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

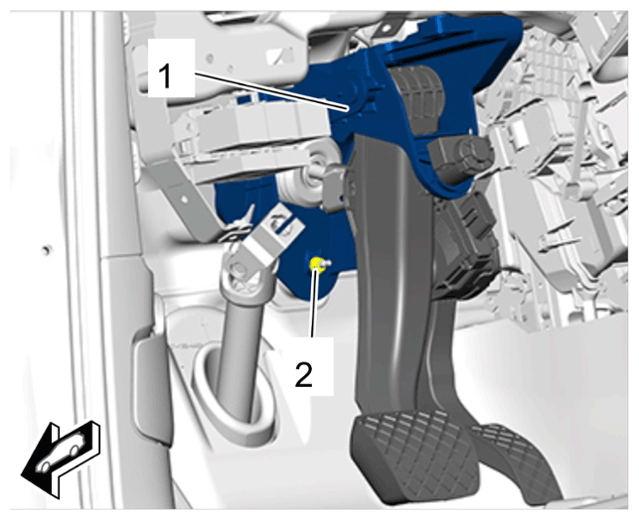

Mounting for mounting saddle

1. 1.1 Position mounting saddle -1-  in the footwell.
   1. 1.1.1 Position brake booster push rod in the ball joint mounting (clip) on the brake pedal.
2. 1.2 Screw on and tighten nut on mounting saddle -2-  .

   > Tightening - torque 9 Nm (6.5 ftlb.)

> Tightening - torque 25 Nm (19 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

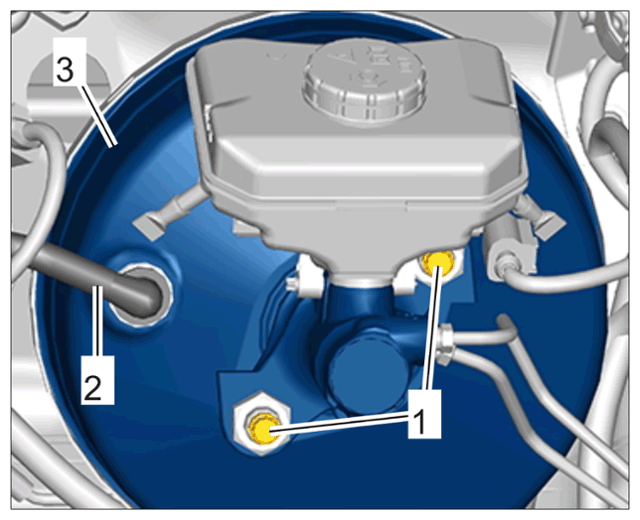

Screws securing mounting saddle to brake booster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

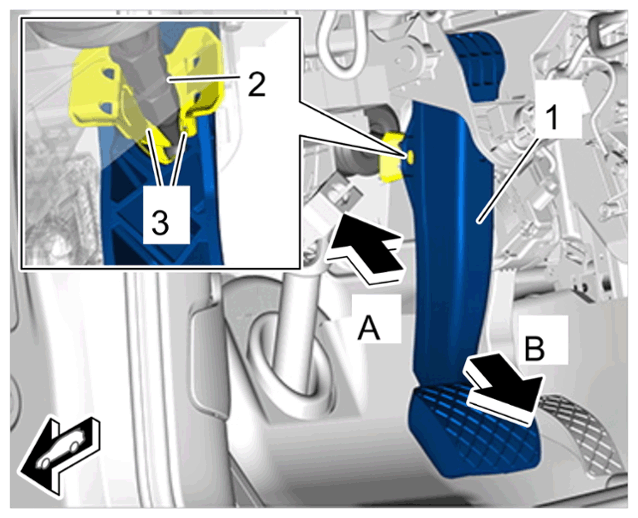

Brake booster push rod on brake pedal

1. 3.1 Lock push rod -2-  to the ball joint mounting.
   1. 3.1.1 Press brake pedal -1-  towards the brake booster -arrow A-  with your hand until the push rod -2-  engages securely in the retaining lugs of the ball joint mounting.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

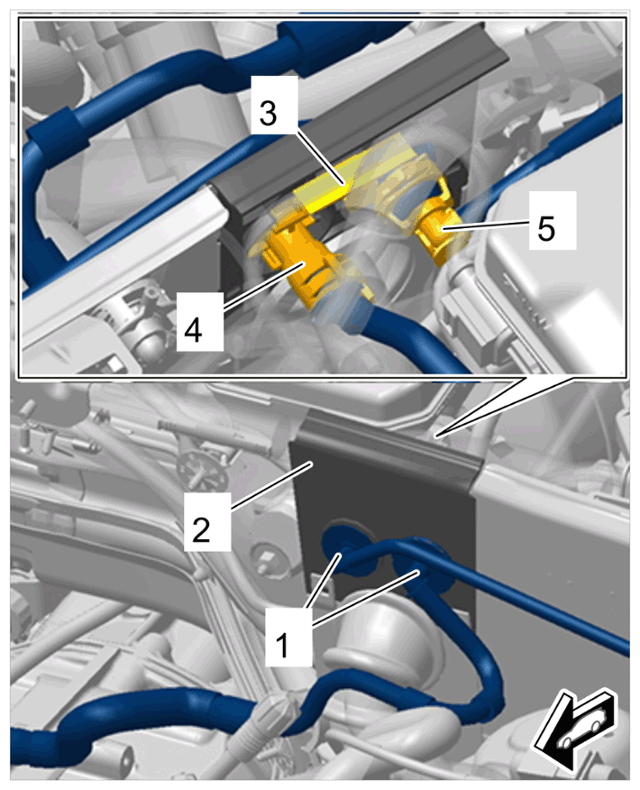

Vacuum lines on plastic bracket

1. 4.1 Position plastic bracket -2-  .
2. 4.2 Clip vacuum lines -1-  into plastic bracket -2-  .
3. 4.3 Connect quick connectors -4 and 5-  .
4. 4.4 Clip in clip -3-  .
