Removing Spreader Device

1. Use the PIWIS Tester  to move the electric parking brake (EPB) into assembly position.
   1. 1.1 Connect the PIWIS Tester  to the vehicle.
   2. 1.2 Select the Parking brake control unit in the control unit overview.
   3. 1.3 Then, select Assembly position  under Maintenance/repairs  .

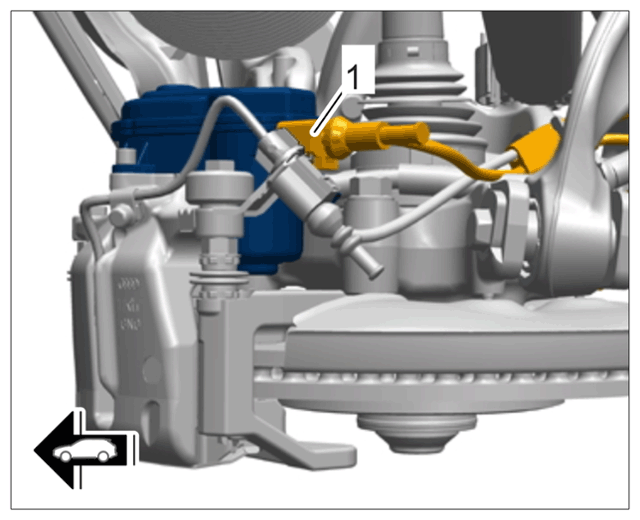

2. Release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for spreader device

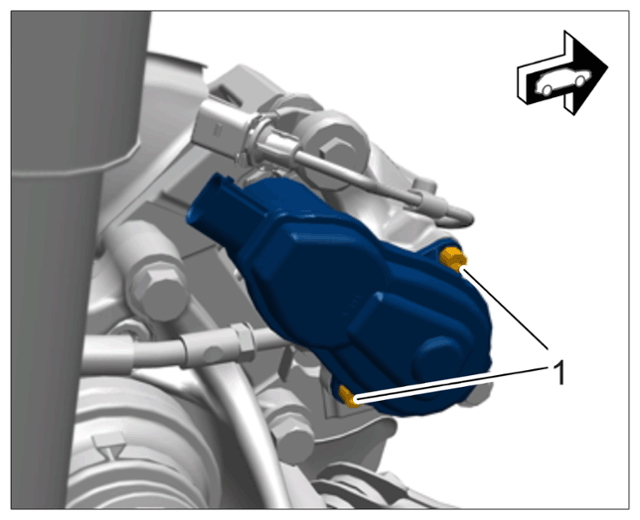

3. Unscrew screws on spreader device -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spreader device mounting

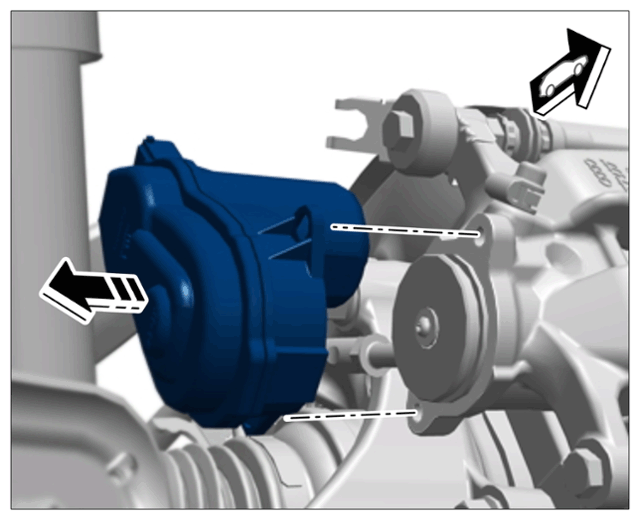

4. Remove spreader device in -direction of arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing spreader device
