Component Overview - Rear Brake (Grey Cast Iron)

WARNING: This page is about a different variant/trim than selected.

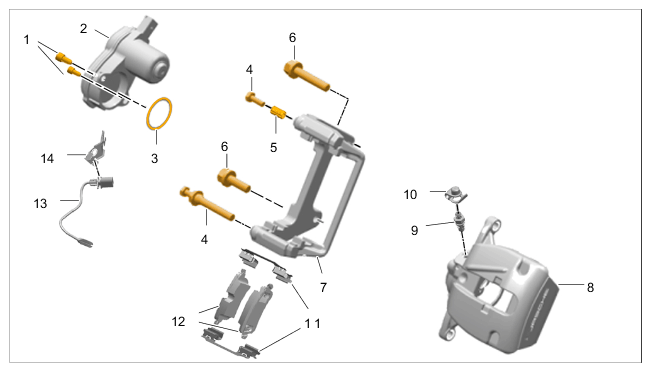

Fig 1: Overview Of Rear Brake Component Locations (Grey Cast Iron)
G15156455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear brake (grey cast iron)

  1. Screw on spreader device
  2. Spreader device
  3. Sealing ring on spreader device
  4. Screw securing brake calliper to calliper carrier
  5. Contact for brake pad wear indicator
  6. Brake calliper
  7. Calliper carrier
  8. Brake pads
  9. Pad retaining bracket
  10. Screw securing brake calliper to wheel bearing housing
