Removing Control Unit For Electric Parking Brake
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Voltage peaks
- Risk of damage to electrical load or to the control unit
- → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
- → Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
- Do not touch electric pins and plug contacts.

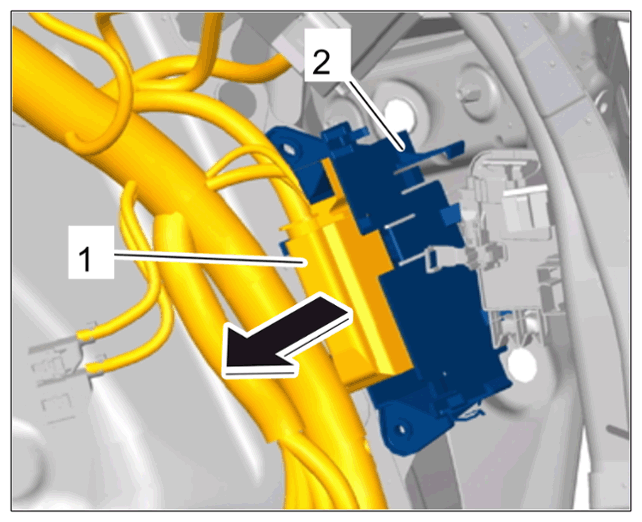

- Unclip control unit for electric parking brake -1-
from holder -2-
, disengage it and pull it out -Arrow-
.
Mounting for control unit for electric parking brake

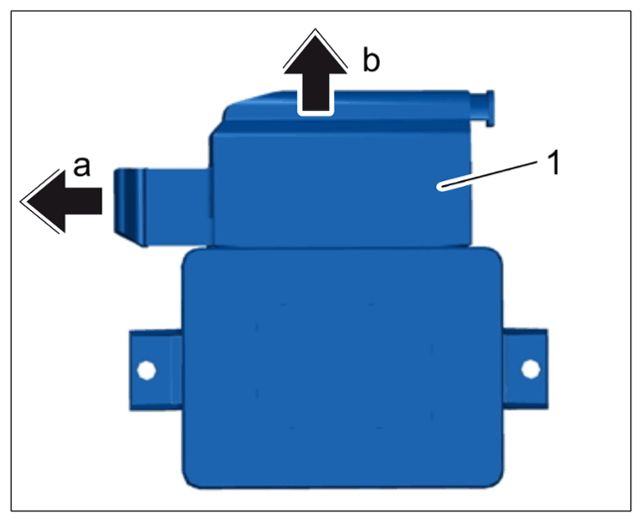

- Release electric plug connection -1- -arrow a- and disconnect it -arrow b- .
Electric plug connection
