Coating On The Pccb Brake Discs (Possible Causes)

The coating on the PCCB brake discs arises as a result of a high load and high temperatures, for example on a racing circuit. Check the following in such cases:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

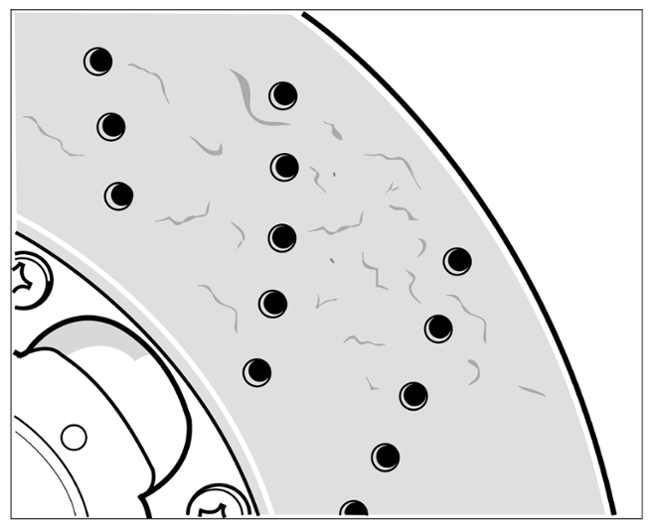

Bores (perforations) in brake disc friction surface (shown as an example)

• Ventilation (brake cooling): all components are present, secured correctly and undamaged.
• Brake pad quality: Use the appropriate brake pads if the vehicle is being used on a racing circuit.
• The perforation bores -see figure-  in the brake discs must not be blocked.
• If there is a coating on the pads, the brake discs can still be used provided the wear criteria of the brake discs are OK.
