Component Overview Of Brake

WARNING: This page is about a different variant/trim than selected.

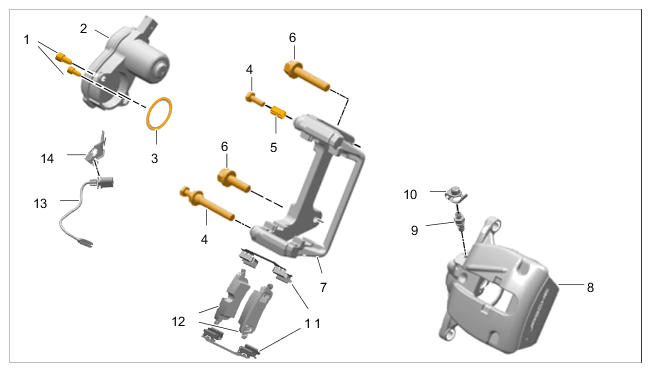

Fig 1: Overview Of Brake Component Locations (Grey Cast-Iron Brake Calliper)
G15156359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of brake (shown on grey cast-iron brake calliper)

  1. Screw on spreader
  2. Spreader
  3. Sealing ring
  4. Screw securing brake calliper to calliper carrier
  5. Contact for brake pad wear indicator
  6. Brake calliper
  7. Calliper carrier
  8. Brake pads
  9. Pad retaining bracket
  10. Screw securing brake calliper to wheel bearing housing
