Checking Rear Disc Brake Pads

Information

If the wheels are mounted, visually check the wear of the brake pads on the inside and outside using a mirror -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

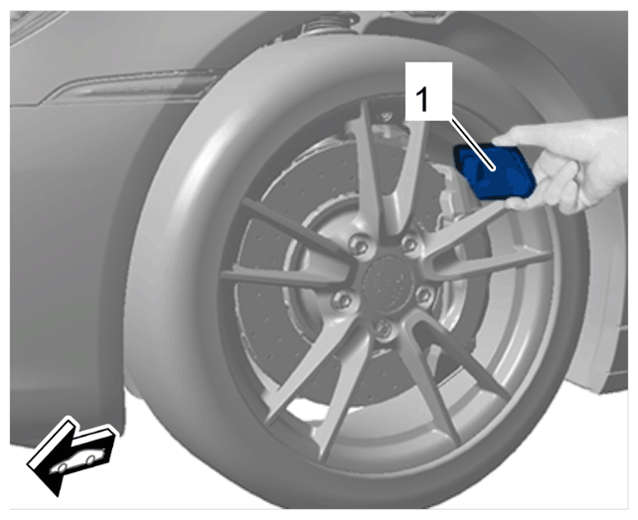

Checking brake pads (shown as an example)

1. Check rear brake pads.
   1. 1.1 Visually inspect pad thickness on the inside and outside of the brake pads for wear.
   2. 1.2 If the brake pad thickness is less than > Control value 2 mm  :

      Replace brake pads.

      > 463856 - REPLACING REAR DISC BRAKE PADS
