Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Pedals to body |
Hexagon nut |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
| Brake booster to pedals |
Item 2: bihexag-onal head bolt |
Tightening torque |
25 Nm (19 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

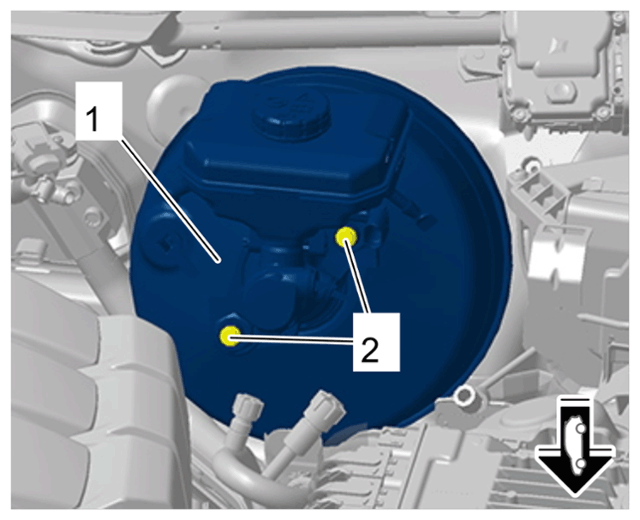

Brake booster screws |
