Removing Mounting Saddle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

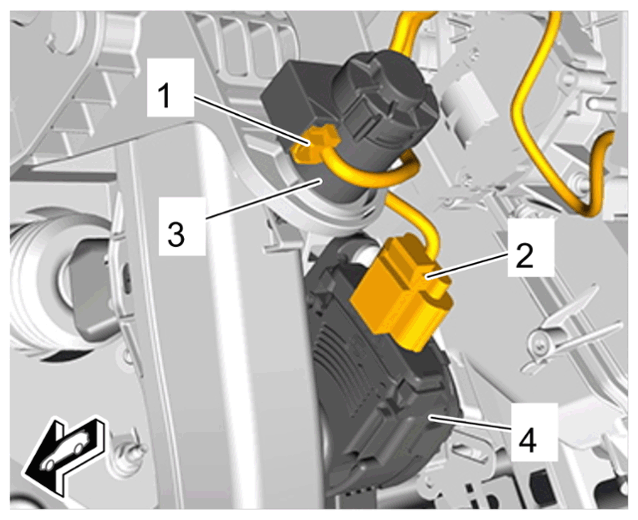

Electric plug connection for brake light sensor and accelerator pedal module

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

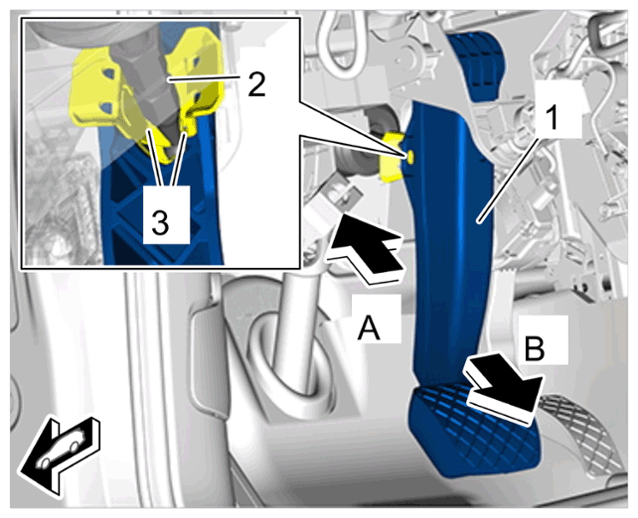

Brake booster push rod on brake pedal

1. 2.1 Press brake pedal -1-  towards the brake booster with your hand -arrow A-  .
2. 2.2 Position > T40136 - release tool  at the retaining lugs -3-  of the ball joint mounting.
3. 2.3 Release retaining lugs of the ball joint mounting -3-  by moving them towards the driver seat using > T40136 - release tool  and counter at the brake pedal -1-  at the same time (the brake pedal must not move towards the driver seat).
4. 2.4 Separate the brake pedal -1-  from the push rod using > T40136 - release tool  by moving it towards the driver seat - arrow B-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

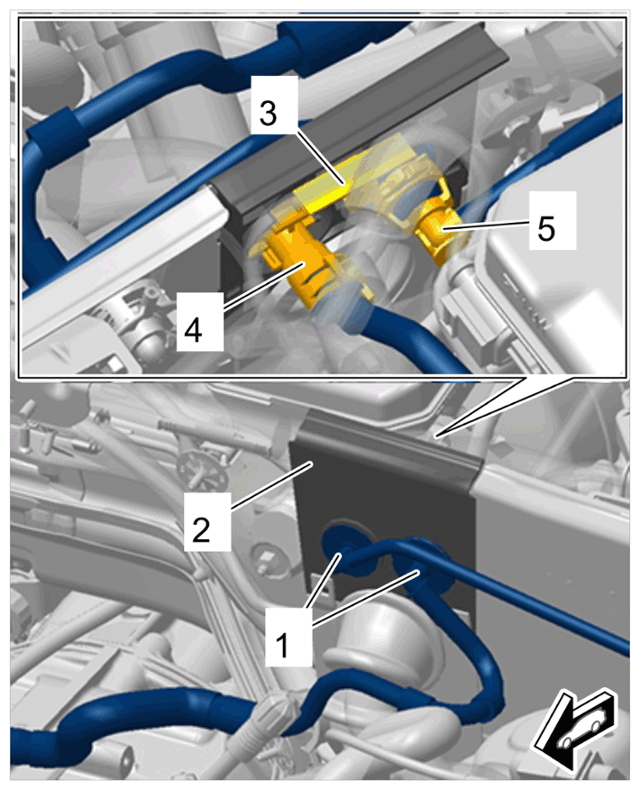

Vacuum lines on plastic bracket

1. 3.1 Unclip clip -3-  .
2. 3.2 Release and open quick connectors -4 and 5-  .
3. 3.3 Unclip vacuum lines -1-  from plastic bracket -2-  .
4. 3.4 Remove plastic bracket -2-  .

Information

The mounting saddle screws cannot be removed from the brake booster when the cross panel is installed and remain in the brake booster while removing and installing the mounting saddle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

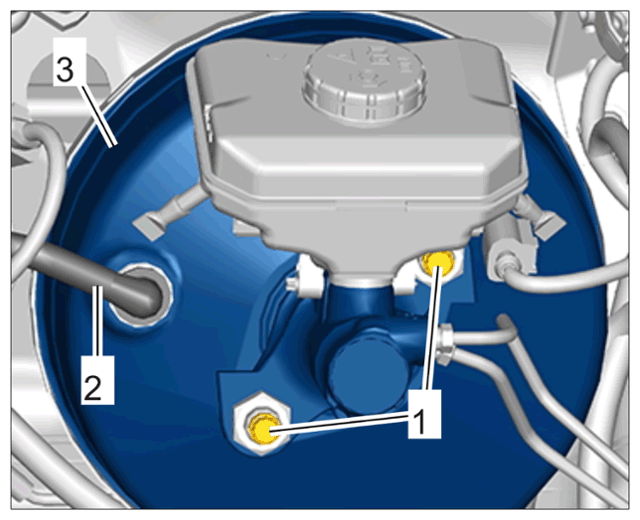

Screws securing mounting saddle to brake booster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

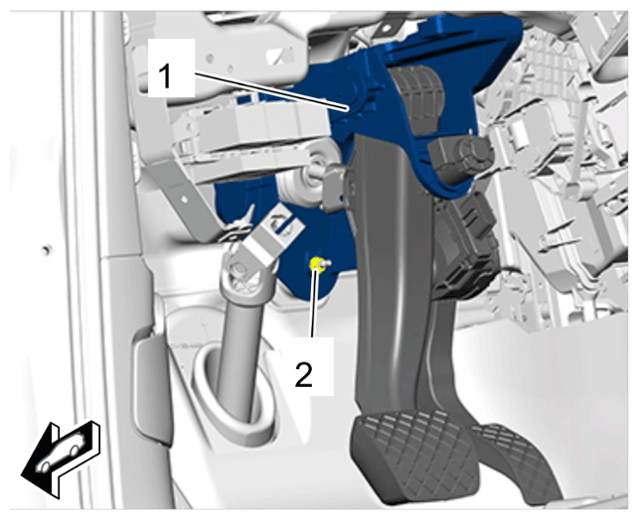

Mounting for mounting saddle

1. 5.1 Unscrew nut on mounting saddle -2-  .
2. 5.2 Guide mounting saddle -1-  out of the footwell.
