Installing Brake Pedal

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

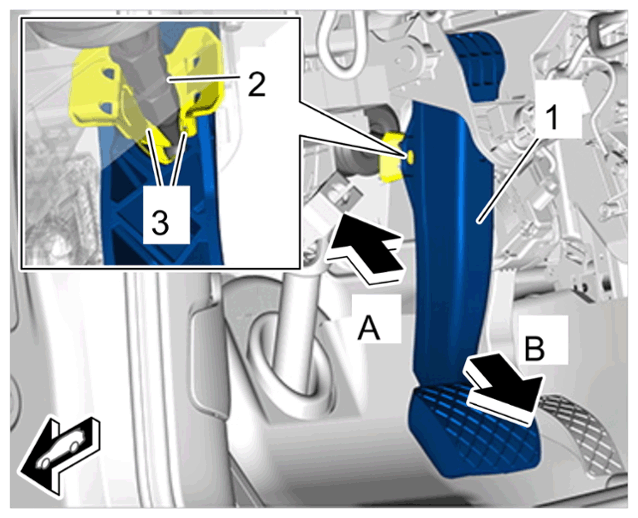

Brake booster push rod on brake pedal
1. 1.1 Check position of the guide groove for the pedal bearing shaft.
2. 1.2 Lock push rod -2- to the ball joint mounting.
  1. 1.2.1 Press brake pedal -1- towards the brake booster -arrow A- by hand until the push rod -2- engages securely in the retaining lugs of the ball joint mounting.
