Disassembling Rear Shock Absorber (Conventional)

WARNING: This page is about a different variant/trim than selected.
  1. Pull protection cap off the spring-strut mount.
  2. Unscrew nut using ratchet -1-  and > T10001 - shock absorber set-2 to 4-  and counter at the hexagon on the piston rod at the same time.

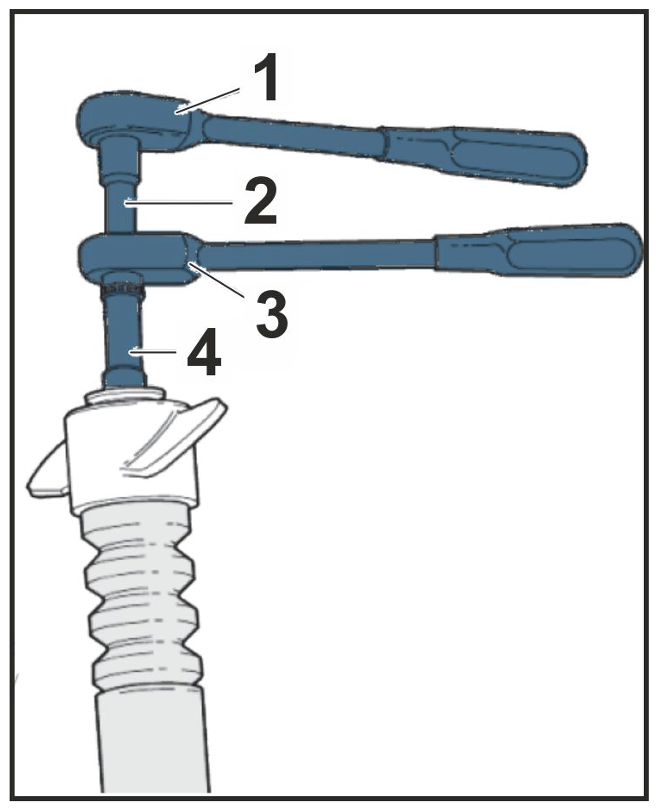

    G15153937Courtesy of AUDI OF AMERICA, LLC

    Nut on piston rod (conventional)

    1 Ratchet (commercially available)
    2 T10001/9  Extension with counter-hold tool
    3 T10001/11  Change-over ratchet
    4 T10001/1  Socket-wrench insert
  3. Remove spring-strut mount with rubber stop and boot.
  4. Pull rubber stop out of the spring-strut mount and boot.
