Adjusting Locking Cable

Information

Do not apply lateral forces to the selector knob pull rod as it can break off.

1. Remove switch console holder 1  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

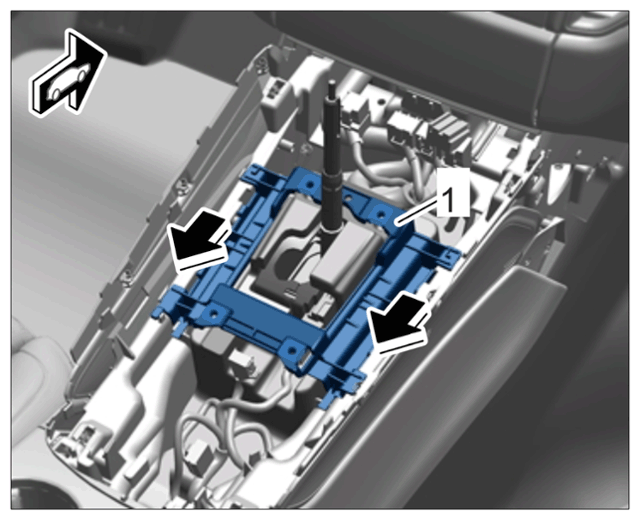

   Switch console holder

   1. 1.1  Release and remove switch console holder -1-  in -direction of arrow-  .
2. Remove insulating mat -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

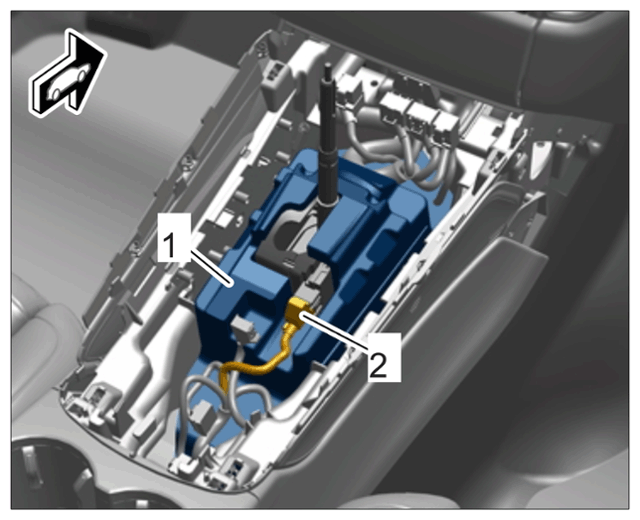

   Insulating mat

   1. 2.1  Release and disconnect cable plug 2  .
   2. 2.2  Remove insulating mat -1-  .

      Information

      • Loosen clamping screw for locking cable by only about 1 turn.
      • The clamping screw is only accessible in selector-lever position "P".
      • When the clamping screw is loosened, the selector lever must remain in position "P".
3. Loosen clamping screw for locking cable by about 1 turn 1  using > T40031 - socket insert a/f 5-2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

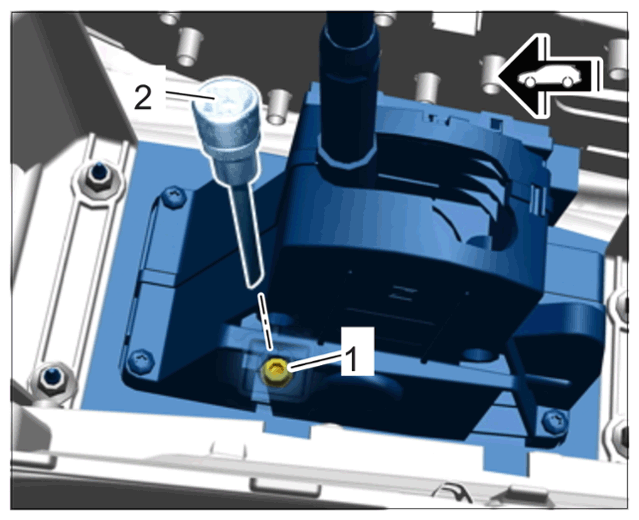

   Fastening screw for locking cable

4. Loosen transmission support 2  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

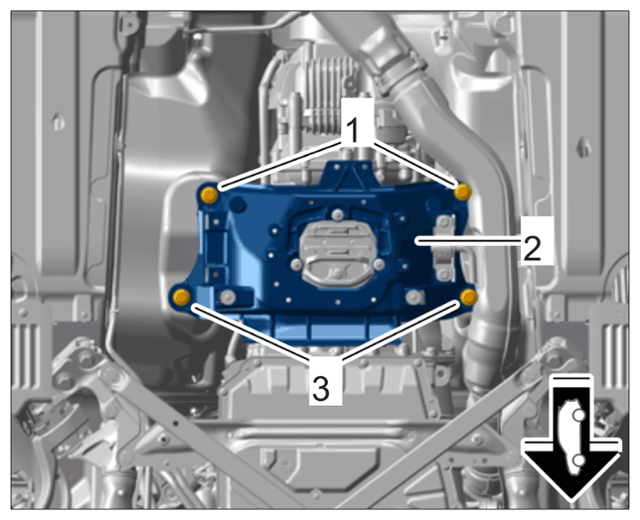

   Transmission support

   1. 4.1  Support transmission at transmission support fusing > VAS 6931 - engine and gearbox jack
      1. 4.1.1  Place a suitable piece of wood under the > VAS 6931 - engine and gearbox jack  and position it under the transmission support so that the screws -1 and 3- are accessible.
   2. 4.2  Unscrew screws -1 and 3-  .
   3. 4.3  Lower transmission with transmission support by about 25 mm.
5. Adjust the locking cable.
   1. 5.1  Loosen ball socket -1-  .
   2. 5.2  The selector-lever position -2-  on the transmission must be at the rearmost position -direction of arrow-  .
   3. 5.3  Secure ball socket 1  to selector lever -2-.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

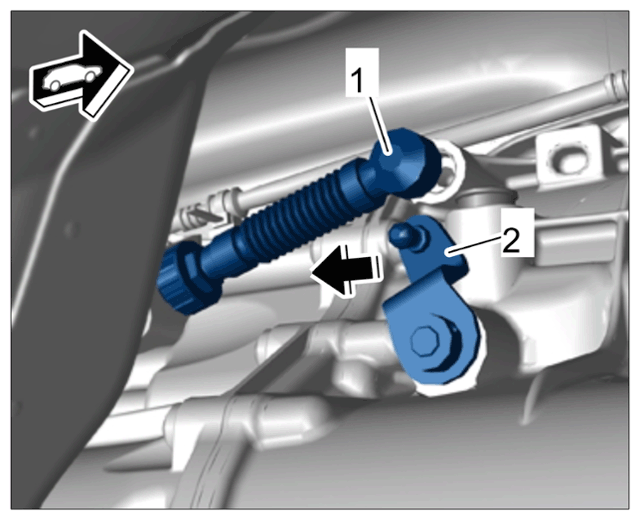

      Selector-lever position

6. Secure transmission support -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Transmission support

   1. 6.1  Lift transmission and transmission support with > VAS 6931 - engine and gearbox jack  .
   2. 6.2  Fit and tighten screws -1 and 3-  .

      > Tightening - torque 70 Nm (52 ftlb.)

   3. 6.3  > VAS 6931 - Engine and gearbox jack  must new be removed.
7. Tighten clamping screw for locking cable fusing > T40031 - socket insert a/f 5-2-  .

   > Tightening - torque 13 Nm (9.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw for locking cable

8. Press release-3-, actuate selector knob i and move selector lever from position "P" to "D" and from position "D" to "M" and back again several times.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

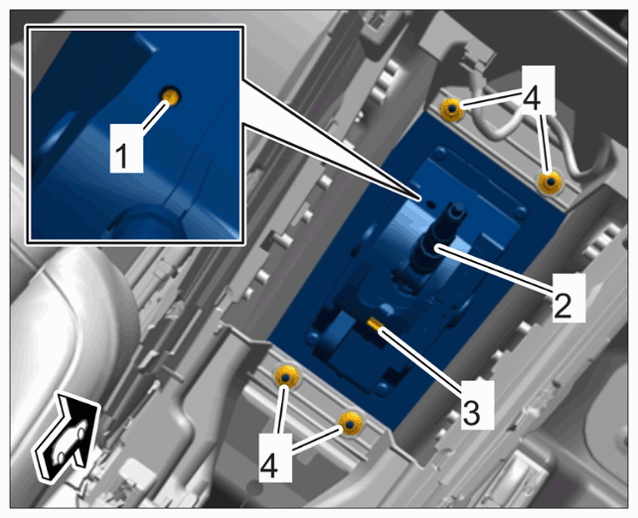

   Selector support

9. Install insulating mat -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Insulating mat

   1. 9.1  Position insulating mat -1-  .
   2. 9.2  Connect and lock cable plug -2-  .
10. Install switch console holder -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch console holder

    1. 10.1  Position switch console holder -1-  and lock it in -direction of arrow-  .
