Loosening Fuel Injectors
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

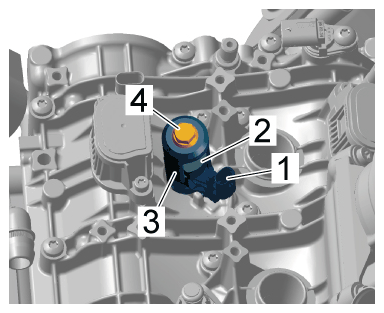

Fuel injector
| 1 |
Fuel injector |
| 2 |
Puller from > T10133C - Tool set |
| 3 |
Puller from > T10133C - Tool set |
| 4 |
M8 screw from the > T10133C - Tool set
> Torque 5 Nm |
