Oxygen Sensors/Temperature Sensors/Differential Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

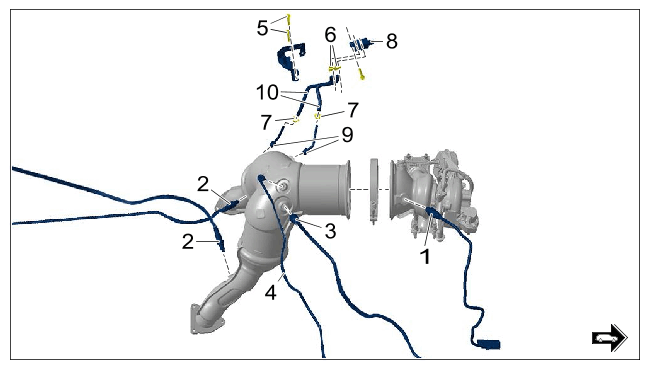

Fig 1: Exhaust Sensors Component Location With Torque Specification (V6 Monoturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of exhaust sensors (V6 monoturbo) (shown as an example)

1	Oxygen sensor upstream of catalytic converter
2	Oxygen sensors upstream of catalytic converter
3	Exhaust temperature sensor
4	> Tightening - torque 45 Nm (33 ftlb.)
5	> Tightening - torque 8 Nm (6 ftlb.) > Tightening - torque 8 Nm (6 ftlb.)
6	Screw-type clamps
7	Screw-type clamps
8	Differential pressure sensor
9	> Tightening - torque 45 Nm (33 ftlb.)
10	Differential pressure hoses

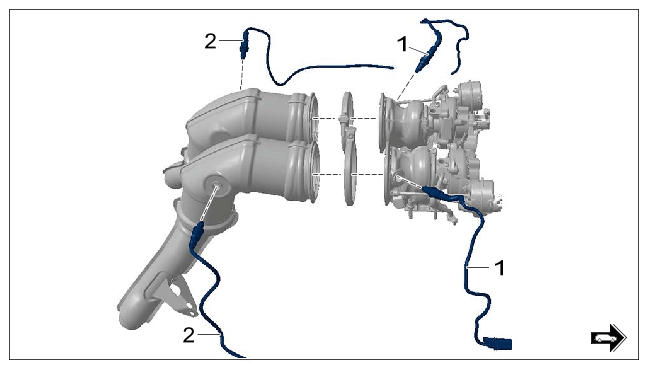

Fig 2: Exhaust Sensors Component Location With Torque Specification (V6 Biturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of exhaust sensors (V6 biturbo) (shown as an example)

1	> Tightening - torque 52 Nm (38 ftlb.)
2	> Tightening - torque 52 Nm (38 ftlb.)
