Intake-Air Distributor - V6 Monoturbo And Biturbo

WARNING: This page is about a different variant/trim than selected.

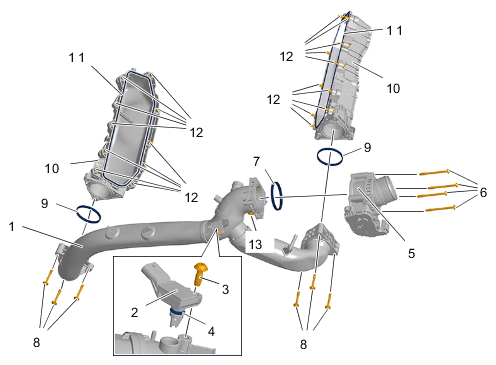

Fig 1: Intake-Air Distributor Component Location With Torque Specification - V6 Monoturbo And Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

intake-air distributor - V6 monoturbo and biturbo

1	Centre intake-air distributor
2	Pressure sensor
3	Screw > Tightening - torque 5 Nm (3.5 ftlb.)
4	O-ring /replace
5	Throttle valve
6	Screws > Tightening - torque 7 Nm (5 ftlb.)
7	Seal /replace if damaged
8	Screws > Tightening - torque 7 Nm (5 ftlb.)
9	Seal /replace if damaged
10	Intake-air distributor, left and right
11	Seal /replace if damaged
12	Screws, M6 x 25/observe specified tightening sequence > Initial - tightening 8 Nm (6 ftlb.) > Final tightening + 45°
13	Screw > Tightening - torque 8 Nm (6 ftlb.)

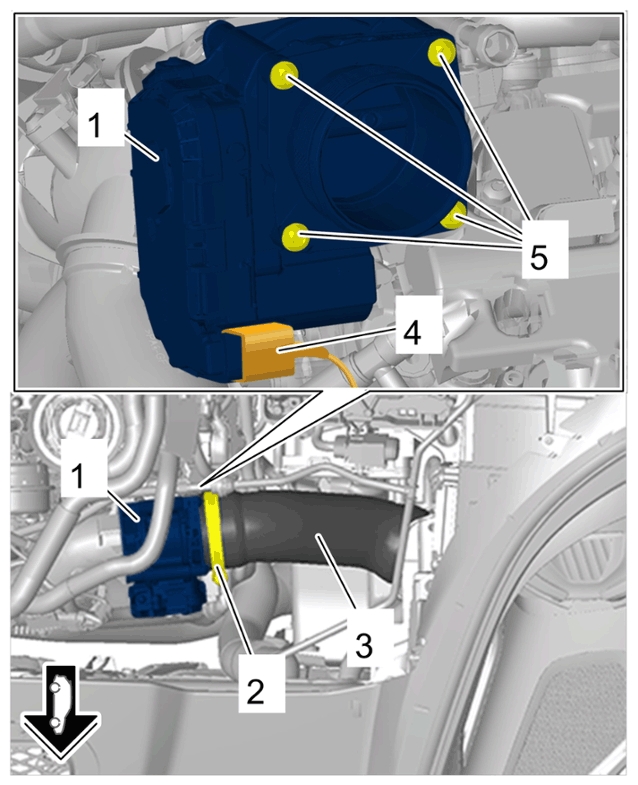

Fig 2: Throttle Housing Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Throttle housing

2	Screw-type clamp > Tightening - torque 5.5 Nm (4 ftlb.)
