Pressure Sensor On Charge-Air Cooler (V6 Biturbo)
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

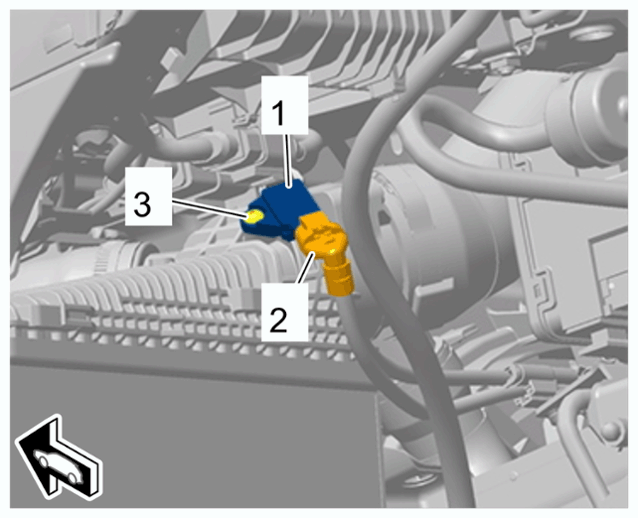

Pressure sensor (on left charge-air cooler)
| 1 |
Pressure sensor |
| 2 |
Electric plug connection |
| 3 |
Screw > Tightening - torque 5 Nm (3.5 ftlb.) |
