Pressure And Intake Pipes (V6 Biturbo)

WARNING: This page is about a different variant/trim than selected.

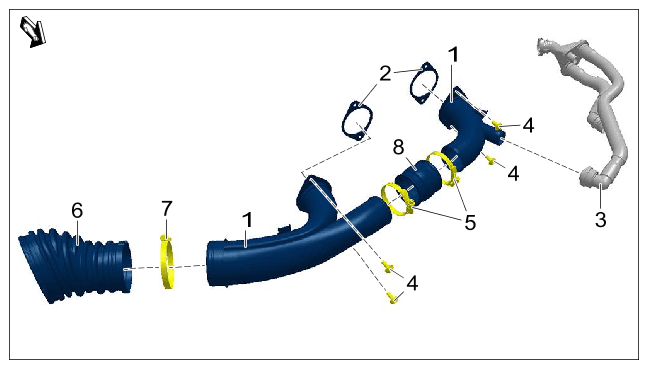

Fig 1: Intake Pipes Component Location With Torque Specification (V6 Biturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of intake pipes (V6 biturbo)

1	Intake pipes
2	Intake pipe seals
3	Positive crankcase ventilation hose
4	> Tightening - torque 9 Nm (6.6 ftlb.)
5	> Tightening - torque 4 Nm (3 ftlb.)
6	Connecting piece for air cleaner housing
7	Screw-type clamp on connecting piece for air cleaner housing
8	Connecting piece for intake pipes

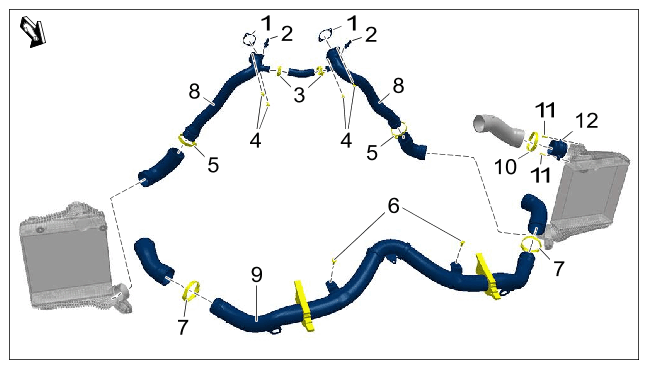

Fig 2: Pressure Pipes Component Location With Torque Specification (V6 Biturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of pressure pipes (V6 biturbo)

1	Pressure pipe seals
2	Pressure sensors
3	> Tightening - torque 5.5 Nm (4.1 ftlb.)
4	> Tightening - torque 9 Nm (6.6 ftlb.)
5	> Tightening - torque 5.5 Nm (4.1 ftlb.)
6	> Tightening - torque 8 Nm (5.9 ftlb.)
7	> Tightening - torque 5.5 Nm (4.1 ftlb.)
8	Pressure pipe at the side
9	Pressure pipe, top
10	Screw-type clamps securing pressure hose to charge-air cooler pipe adapter
11	Screws on pipe adapter for charge-air cooler > Tightening - torque 3.5 Nm (2.6 ftlb.)
12	Pipe connection on charge-air cooler/assembly instructions: Mixture of 50% water and 50% "Kluberplus" permitted as sliding compound for fitting support on charge-air cooler
