Charge-Air Cooler-V6 Biturbo
WARNING: This page is about a different variant/trim than selected.

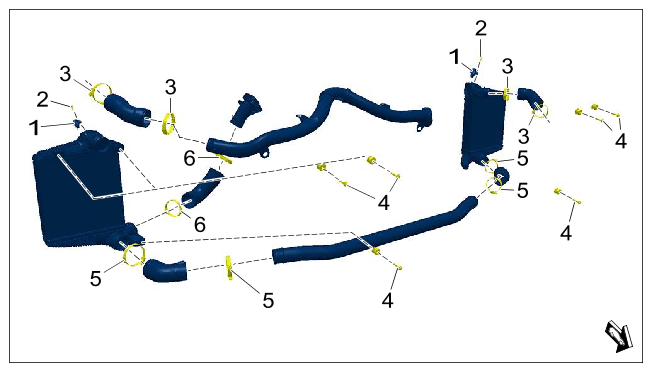

Overview of charge-air cooler (V6 biturbo)
| 1 | Boost pressure sensors |
| 2 | Screws securing boost pressure sensors to charge-air cooler |
| 3 | Screw-type clamps |
| 4 | > Tightening - torque 7 Nm (5 ftlb.) |
| 5 | > Tightening - torque 5.5 Nm (4 ftlb.) |
| 6 | > Tightening - torque 5.5 Nm (4 ftlb.) |
