Air Cleaner/Air Cleaner Housing

WARNING: This page is about a different variant/trim than selected.

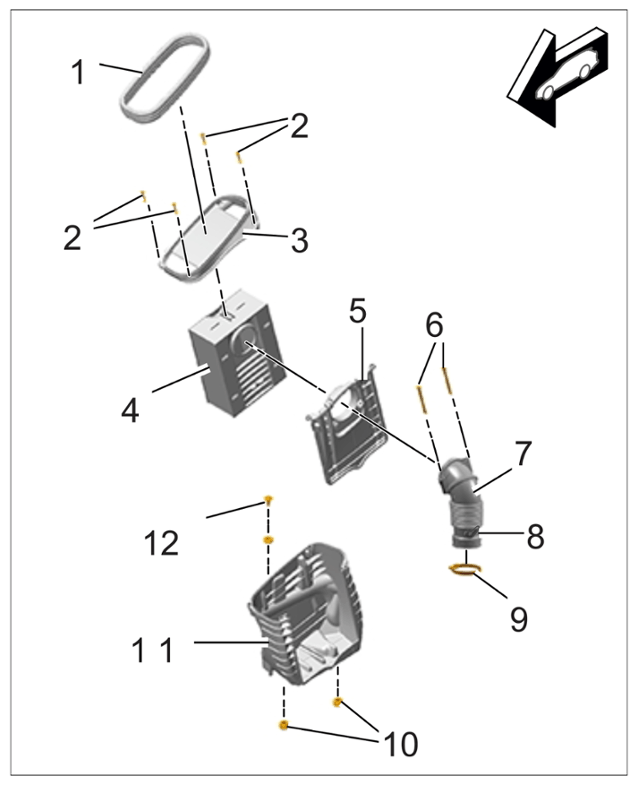

Fig 1: Air Cleaner And Air Cleaner Housing Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cleaner/air cleaner housing

1	Rubber seal
2	Screws > Tightening - torque 3.5 Nm (2.5 ftlb.)
3	Air cleaner housing cover
4	Air cleaner cartridge
5	Air cleaner cartridge cover
6	Fastening bolt > Torque angle 90°
7	Intake pipe
8	Vacuum hose connection
9	Screw-type damp > Tightening - torque 5.5 Nm (4 ftlb.)
10	Rubber sleeve
11	Air cleaner housing
12	Screw > Tightening - torque 3.5 Nm (2.5 ftlb.)

not shown on graphic Screw-type clamp > Tightening - torque 4 Nm (3 ftlb.)
