Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2

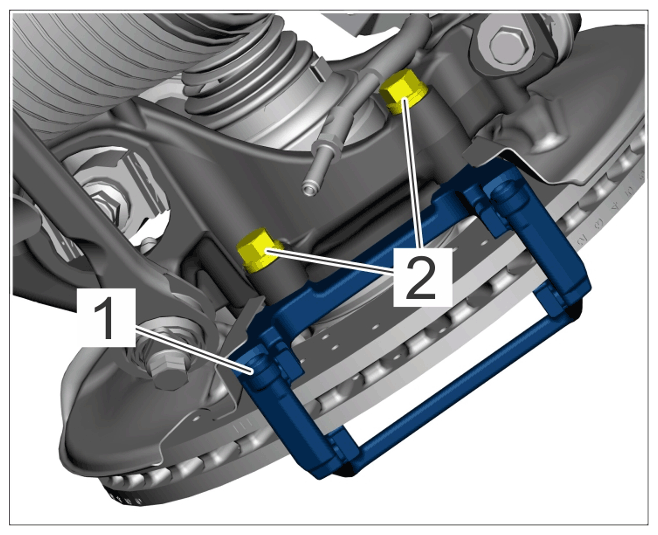

Brake calliper carrier to wheel bearing housing (all variants) Item 2: M12/always use new screws or bolts following removal Initial tightening 100 Nm (74 ftlb.)
G15154355Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake calliper carrier to wheel bearing housing
Brake calliper carrier to wheel bearing housing (all variants) Item 2: M12/always use new screws or bolts following removal Final tightening + 90°
G15154358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake calliper carrier to wheel bearing housing
Brake hose to brake calliper Do not twist brake hose Tightening torque 20 Nm (15 ftlb.)
