Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

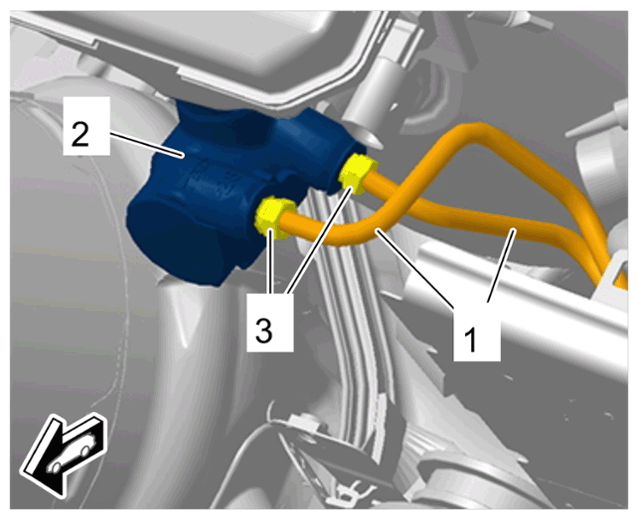

| Brake line to brake master cylinder (left-hand drive vehicles) | Item 3: Union nut | Tightening torque | 14 Nm (10.5 ftlb.) | ||
|
Brake lines on brake master cylinder |
|||||

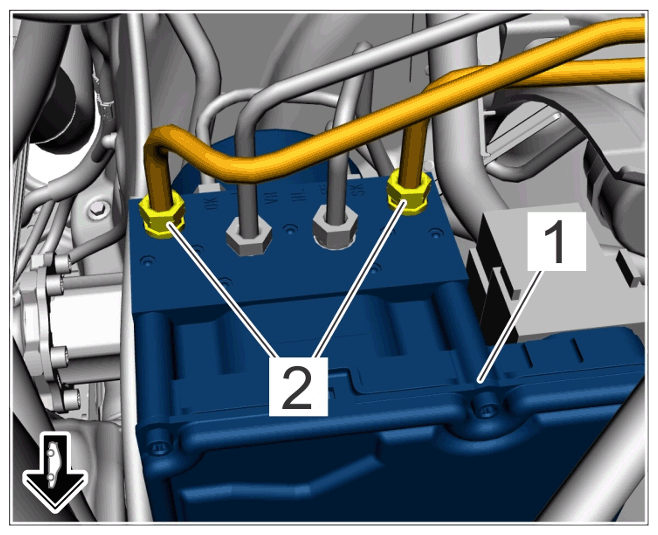

| Brake line to outer hydraulic unit (right-hand drive vehicles) | Item 2: Union nut | Tightening torque | 18 Nm (13 ftlb.) | ||
|
Brake lines to outer hydraulic unit |
|||||

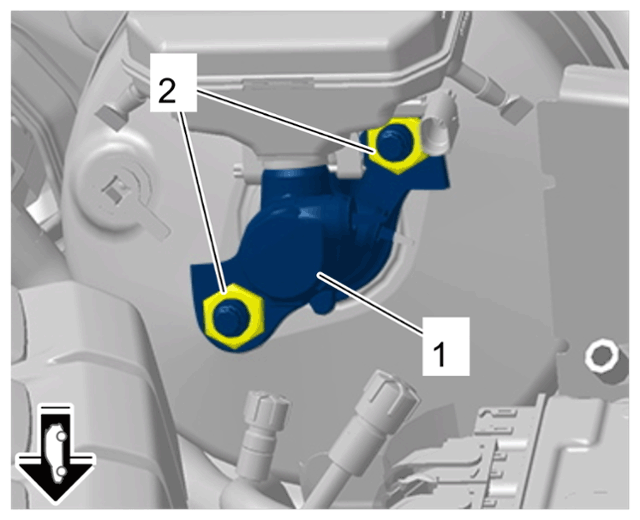

| Brake master cylinder to brake booster | Item 2: Hexagon nut/Always replace nuts following removal | Tightening torque | 49 Nm (36 ftlb.) | ||
|
Brake master cylinder |
