Installing Oil Separator

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  1. → Protect components from dirt and contamination.
  2. → Clean or replace dirty components.

1. Install oil separator -1-  .
   Fig 1: Oil Separator Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil separator

   1. 1.1  Clean sealing faces and replace seals.
   2. 1.2  Position oil separator -1-  .

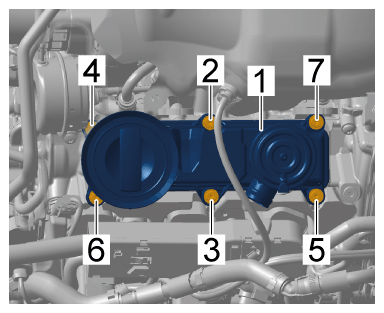

   3. 1.3  Fit and tighten screws for oil separator in the sequence -2 to 7-  .
   • Tightening torque 9 Nm (6.5 ftlb.)

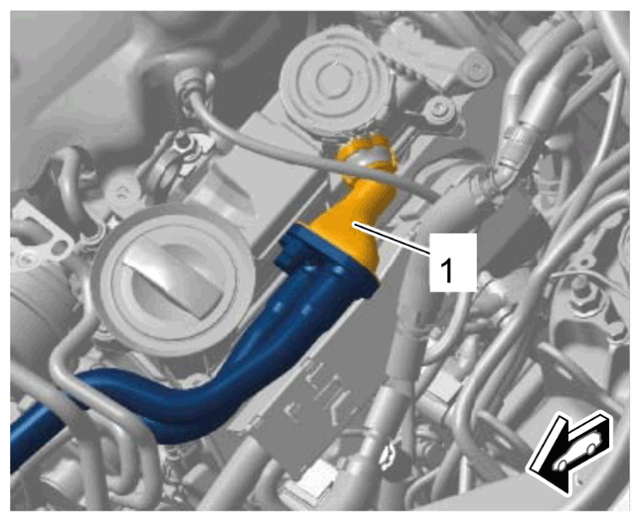

2. Push adapter -1-  onto oil separator and lock it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adapter for oil separator
