Securing Engine To Engine Crane

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
1. → Secure components to prevent them from falling down.

CAUTION: Heavy components

Risk of squashing
1. → Wear personal protective gear.
2. → Get someone to help if necessary.

Information

The pictures shown in this document may differ from the original.
1. VAS 6100 - Workshop crane must be secured to the engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

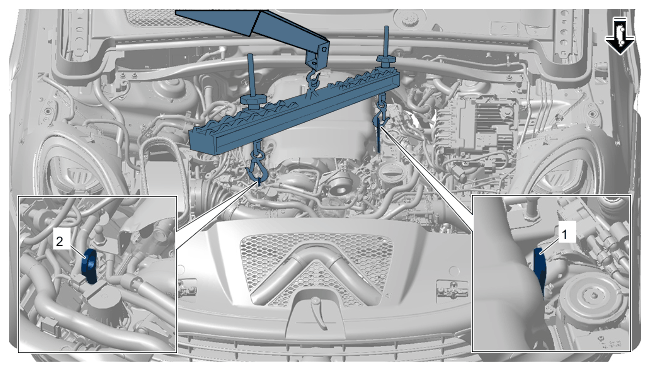

Workshop crane on engine

1.1 Engage one hook of the > 3033 - lifting tackle in the rear transport eyebolt -1- on the engine. Engage the other hook of the > 3033 - lifting tackle in the front transport eyebolt on the engine -2- .
1.2 > VAS 6100 - Workshop crane must be lifted up slightly. Then tension the spindles slightly, making sure that the > 3033 - lifting tackle is adjusted evenly.
