Tools And Materials
WARNING: This page is about a different variant/trim than selected.
VAS 6832/5

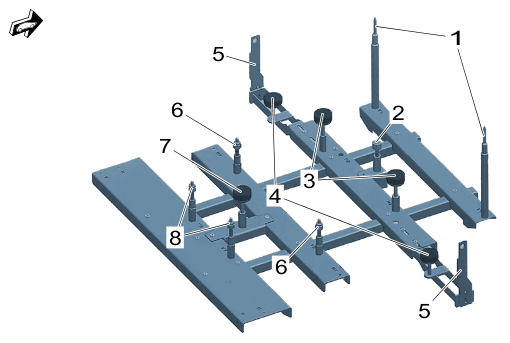

- VAS 6832/5 - Assembly Fixture - Macan
| 1 | Locating peg |
| 2 | Carrier plate |
| 3 | Support plate |
| 4 | Support plate |
| 5 | Support (wheel hub) |
| 6 | Locating peg |
| 7 | Support plate |
| 8 | Mounting peg |

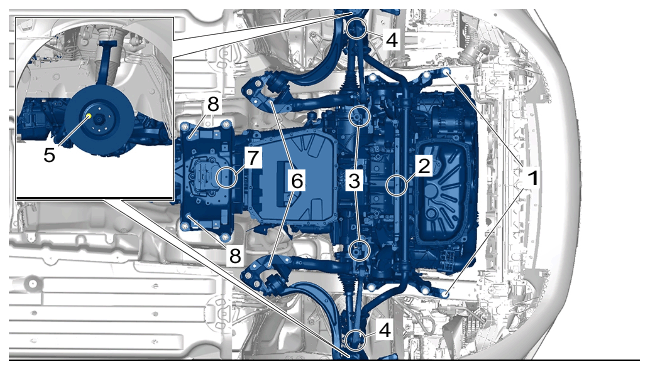

Mounting points
| 1 | Locating peg mountings |
| 2 | Base (front-axle carrier) for carrier plate |
| 3 | Bases (front-axle carrier) for support plate |
| 4 | Bases (lower trailing arm) for support plate |
| 5 | Support (wheel hub) |
| 6 | Locating peg mounting |
| 7 | Base (transmission support) for support plate |
| 8 | Mounting (transmission support) for mounting pegs |
