Installing Chain Tensioner On Balance Shafts
WARNING: This page is about a different variant/trim than selected.
- Screw in and tighten chain tensioner on balance shafts -1-
with screw-locking agent.
> Tightening - torque 85 Nm (63 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

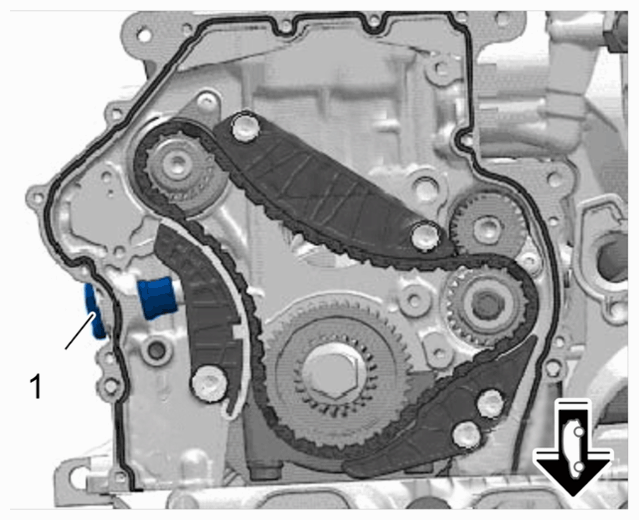

Chain tensioner on balance shafts
