Exhaust System - R4

WARNING: This page is about a different variant/trim than selected.

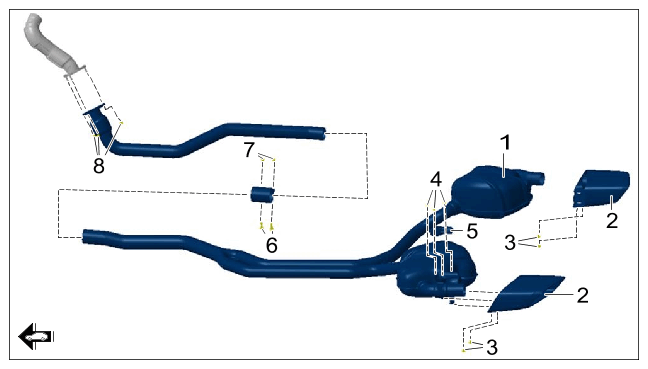

Fig 1: Exhaust System Component Location With Torque Specification (R4)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of exhaust system (R4)

1	Exhaust system
2	Tailpipe cover
3	> Tightening - torque 8 Nm (6 ftlb.)
4	Screws securing exhaust flap actuator to exhaust pipe
5	Exhaust flap actuator
6	Screws > Tightening - torque 30 Nm (22 ftlb.)
7	Nuts on clamp
8	> Tightening - torque 23 Nm (17 ftlb.)

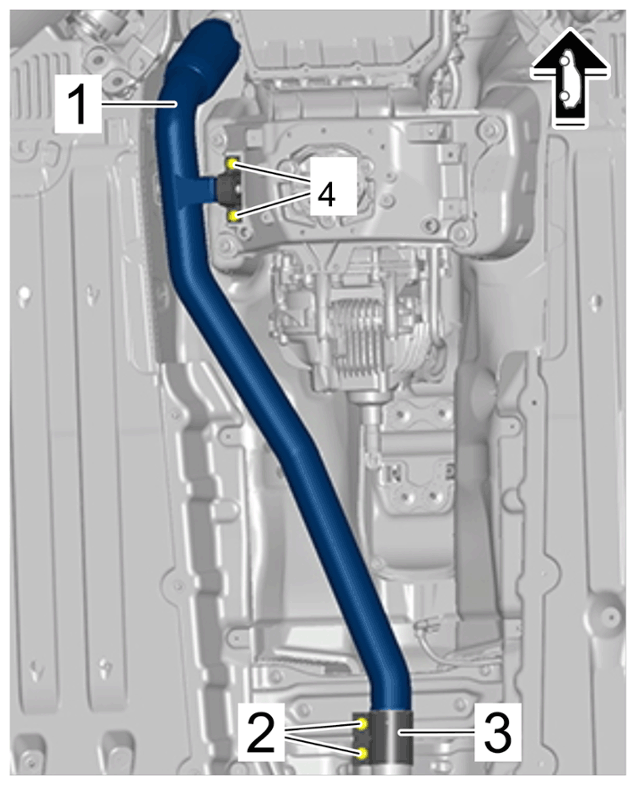

Fig 2: Exhaust Pipe Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust pipe

1	Exhaust pipe
2	Screws for exhaust clamp (clamp)
3	Exhaust gas clamp/Replace
4	Screws securing exhaust system holder to transmission > Tightening - torque 23 Nm (17 ftlb.)

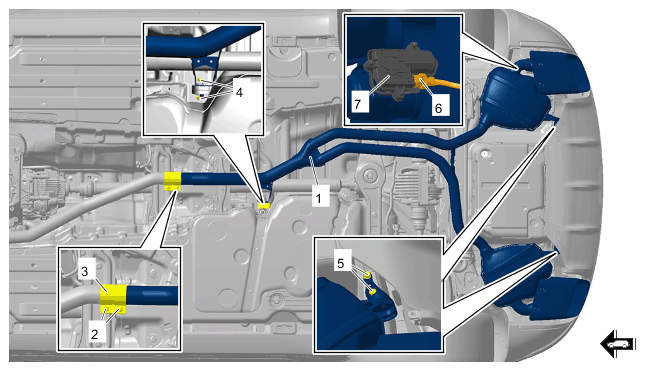

Fig 3: Exhaust System Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system

4	Screws > Tightening torque 23 (1 7 ftlb.) Nm
5	Screws > Tightening - torque 20 Nm (15 ftlb.)
