Charge Air System
WARNING: This page is about a different variant/trim than selected.

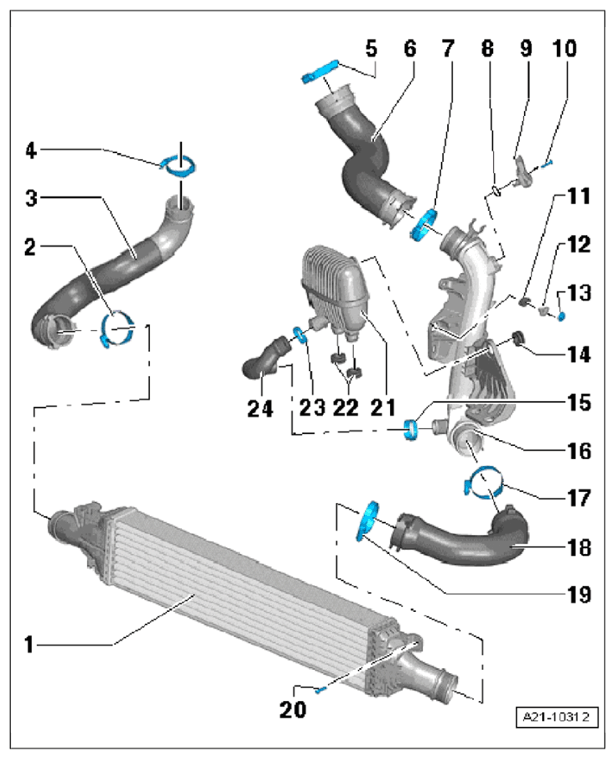

Charge air system
| 1 | Charge-air cooler |
| 2 | Screw-type clamp > Tightening - torque 5.5 Nm (4 ftlb.) |
| 3 | Moulded hose |
| 4 | Screw-type clamp > Tightening - torque 5.5 Nm (4 ftlb.) |
| 5 | Screw-type clamp > Tightening - torque 5.5 Nm (4 ftlb.) |
| 6 | Moulded hose |
| 7 | Screw-type clamp > Tightening - torque 5.5 Nm (4 ftlb.) |
| 8 | O-ring/replace |
| 9 | Boost pressure sensor (pressure and temperature) |
| 10 | Screw > Tightening - torque 5 Nm (3.5 ftlb.) |
| 11 | Rubber sleeve |
| 12 | Bush |
| 13 | Nut > Tightening - torque 9 Nm (6.5 ftlb.) |
| 14 | Rubber sleeve |
| 15 | Screw-type clamp > Tightening - torque 3 Nm (2 ftlb.) |
| 16 | Pressure pipe |
| 17 | Screw-type clamp > Tightening - torque 5.5 Nm (4 ftlb.) |
| 18 | Moulded hose |
| 19 | Screw-type clamp > Tightening - torque 5.5 Nm (4 ftlb.) |
| 20 | Screw > Tightening - torque 7 Nm (5 ftlb.) |
| 21 | Silencer |
| 22 | Rubber sleeve |
| 23 | Screw-type clamp > Tightening - torque 3 Nm (2 ftlb.) |
| 24 | Moulded hose |
