Removing Balance Shaft On Outlet Side

WARNING: This page is about a different variant/trim than selected.

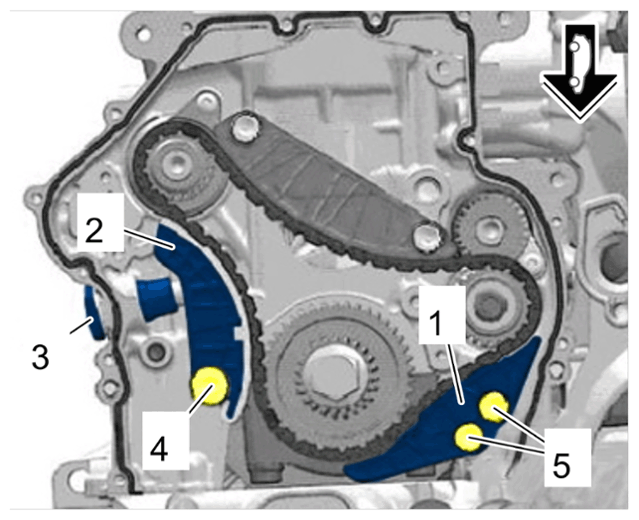

Remove guide and tension rail -1 and 2- for balance shaft timing chain.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Balance shaft timing chain
1. 1.1 Unscrew chain tensioner -3- .
2. 1.2 Remove tension rail -2- .
  1. 1.2.1 Unscrew guide pins -4- .
  2. 1.2.2 Remove tension rail -2- .
3. 1.3 Remove guide rail -1- .
  1. 1.3.1 Unscrew guide pins -5- .
  2. 1.3.2 Remove guide rail -1- .
Remove balance shaft timing chain.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

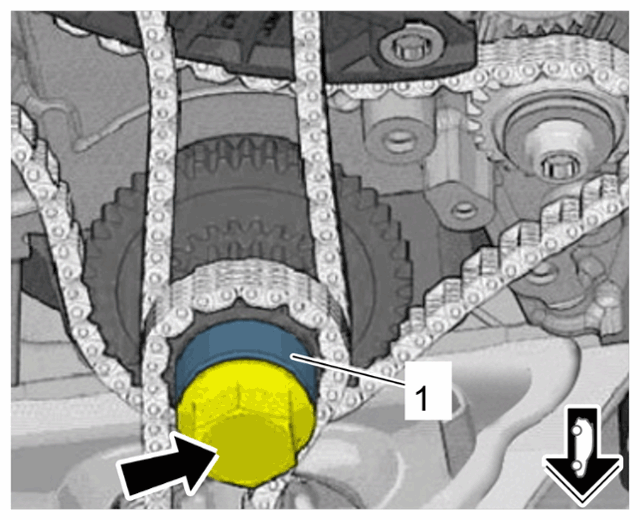

Thrust piece on sprocket
1. 2.1 Unscrew screw -Arrow- and remove T10368 - thrust piece-1- .
2. 2.2 Remove balance shaft timing chain together with crankshaft sprocket.

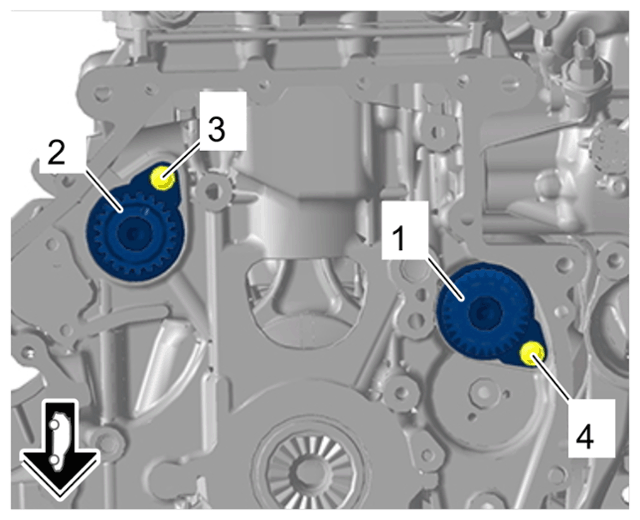

Removing balance shaft on outlet side -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Balance shafts
1. 3.1 Unscrew screw for balance shaft on outlet side -3- .
2. 3.2 Remove balance shaft on outlet side -2- together with guide tube from cylinder block.
