Installing Balance Shaft On Intake Side
- Before installing new balance shaft: Remove old sealing ring on balance shaft.

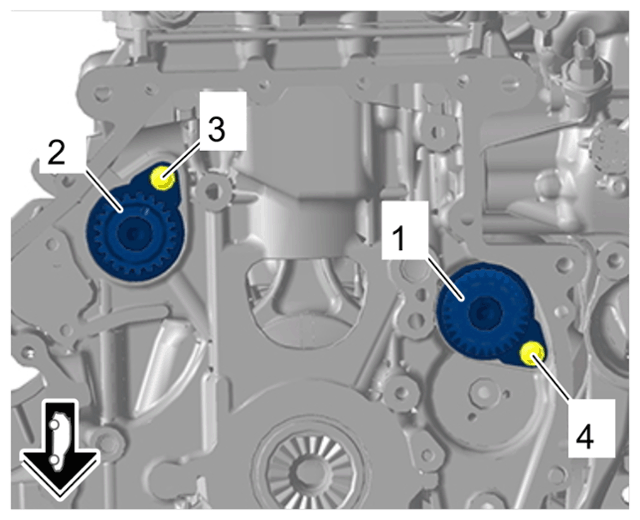

- Install new
balance shaft on intake side -1-
.
Balance shafts
- 2.1 Oil the mount for the new balance shaft on the intake side with engine oil.
- 2.2 Insert balance shaft on intake side -1- into cylinder block.
- 2.3 Replace screw for balance shaft on intake side -4- .
- 2.4
Fit and tighten screw for balance shaft on intake side -4-
.
> Initial - tightening torque 4 Nm (3 ftlb.)
> Final tightening torque + 45°

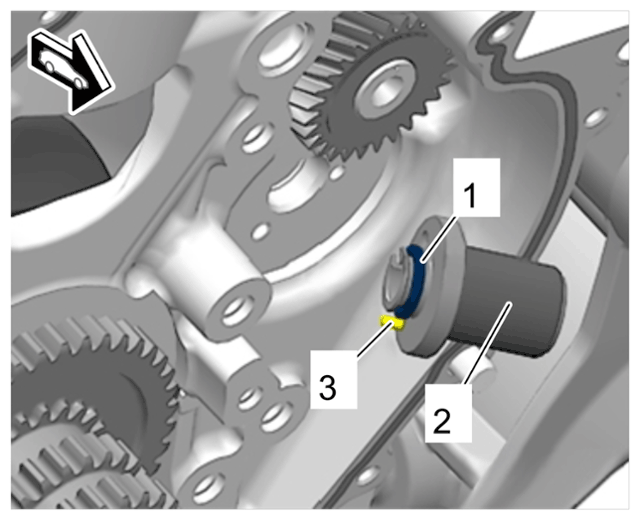

- Replace O-ring -1-
for bearing pin of intermediate shaft gearwheel -2-
.
Bearing pin for intermediate shaft gearwheel
- 3.1 Pull bearing pin for intermediate shaft gearwheel -2- from cylinder block.
- 3.2 Replace O-ring -1- .
- 3.3 Insert bearing pin for intermediate shaft gearwheel -2- into cylinder block. Make sure that dowel pin -3- of the bearing pin for intermediate shaft gearwheel -2- engages in the bore on the cylinder block.
Information
The intermediate shaft gearwheel must be replaced.
The new intermediate shaft gearwheel has an anti-friction coating that wears off after a short time, thereby setting the correct tooth backlash automatically.
If the intermediate shaft gearwheel is not replaced, there is a danger of engine damage due to incorrect tooth backlash.

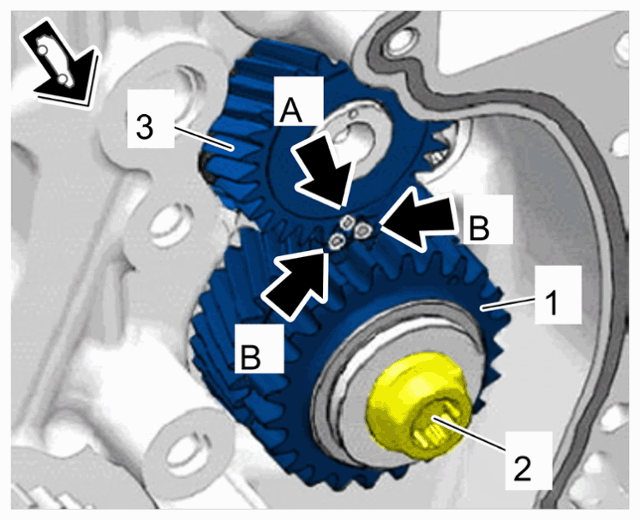

- Install new
intermediate shaft gearwheel -1-
.
Intermediate shaft gearwheel
- 4.1 Align balance shaft -3- so that the markings on balance shaft -Arrow A- and intermediate shaft gearwheel -Arrows B- are aligned.
- 4.2 Copy marking -Arrows B- on intermediate shaft gearwheel -1- onto the teeth using a coloured marker to make it easier to fit intermediate shaft gearwheel -1- .
- 4.3 Fit new intermediate shaft gearwheel -1- .
- 4.4 Check that markings -Arrows- are aligned correctly.
- 4.5 Replace screw on intermediate shaft gear wheel -2- .
- 4.6
Fit and tighten screw on intermediate shaft gearwheel -2-
.
> Initial - tightening 10 Nm (7.5 ftlb.)
Check intermediate gear for play by turning. If there is play on the intermediate gear: Loosen and tighten again.
> Final - tightening 25 Nm (19 ftlb.)
> Torque angle + 90°
Information
The screw of the coolant pump drive belt pulley has a left-hand thread.

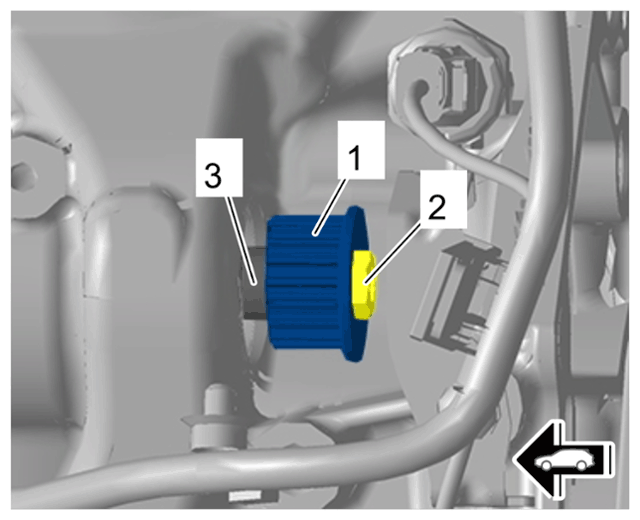

- Install coolant pump drive wheel -1-
.
Coolant pump drive gear
- 5.1 Fit coolant pump drive wheel -1- on the balance shaft -3- .
- 5.2 Replace screw -2- .
- 5.3 Screw in new screw -2- as far as it will go by hand and then loosen by about three turns.

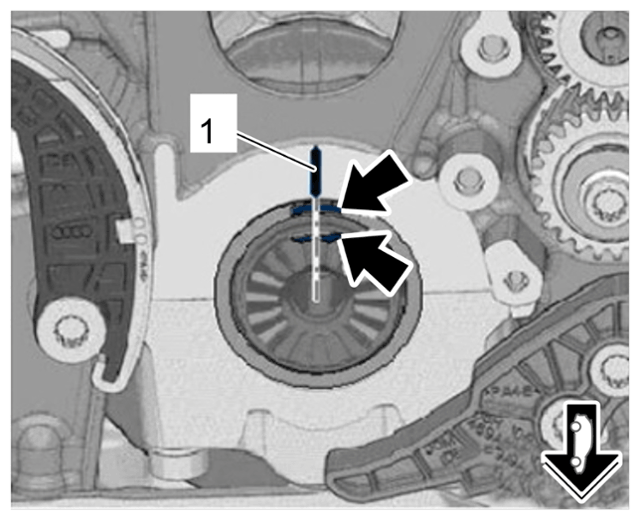

- Apply TDC marking on cylinder block .
TDC marking
- 6.1 Check that markings -Arrows- for TDC position of the crankshaft are aligned.
- 6.2 Apply marking on cylinder block -1- using a permanent marker.

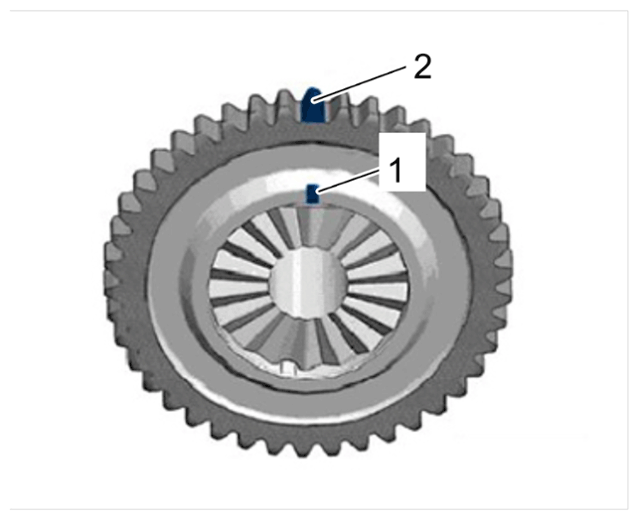

- Copy marking -1-
to the tooth of sprocket using a permanent marker.
Marking on sprocket

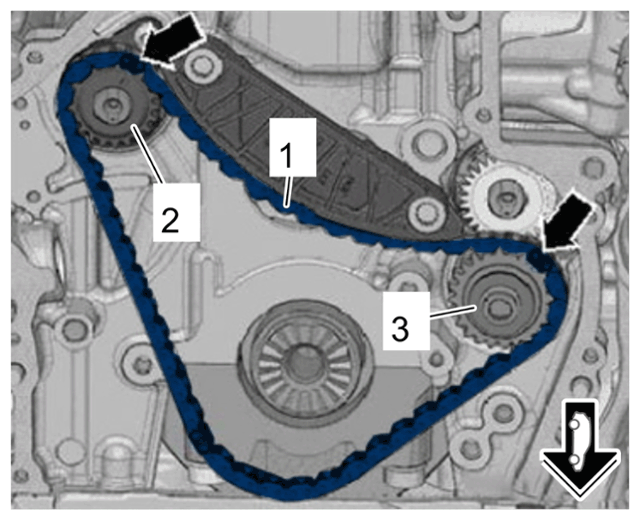

- Fit balance shaft timing chain -1-
so that coloured chain links -Arrows-
are aligned with the markings on sprockets -2 and 3-
.
Balance shaft timing chain

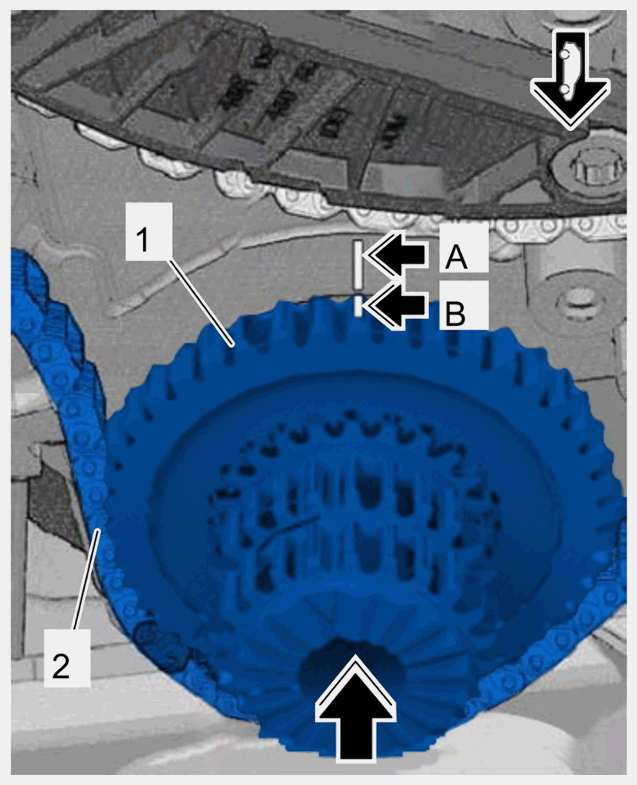

- Install sprocket
Sprocket (three-stage)
- 9.1 Insert sprocket -1- into balance shaft timing chain -2- so that markings -A and B- are aligned.
- 9.2 Fit sprocket -1- on crankshaft -Arrow- .

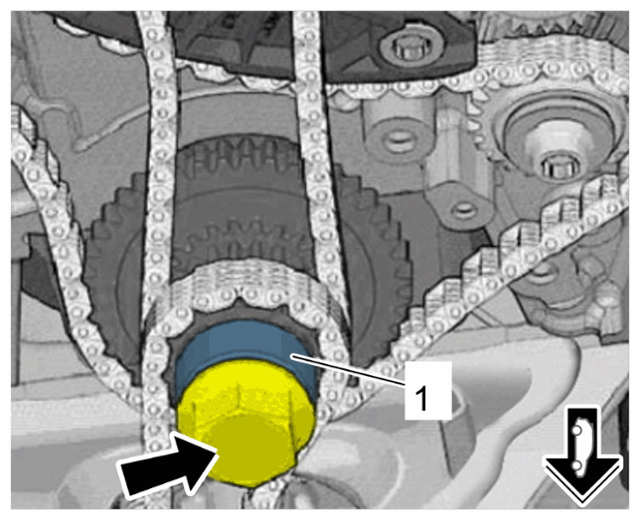

- Secure T10368 - thrust piece-1-
using crankshaft pulley screw -Arrow-
.
Thrust piece on sprocket

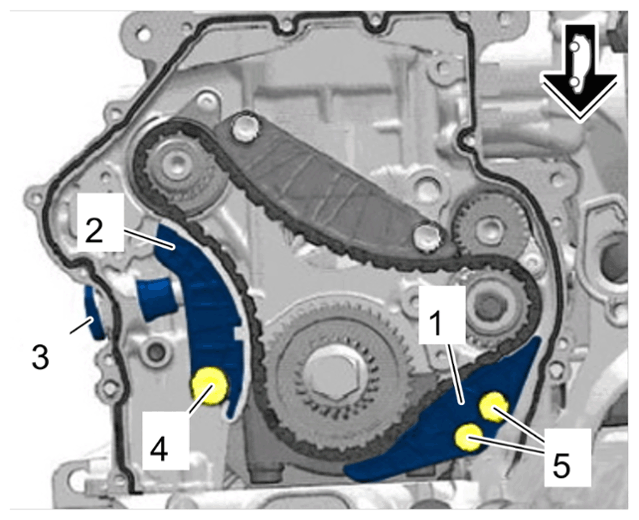

- Install guide and tension rail -1 and 2-
for balance shaft timing chain.
Balance shaft timing chain
- 11.1
Install guide rail -1-
.
- 11.1.1 Position guide rail -1- .
- 11.1.2
Fit and tighten guide pins -5-
.
> Tightening - torque 20 Nm (15 ftlb.)
- 11.2
Install tension rail -2-
.
- 11.2.1 Position tension rail -2- .
- 11.2.2
Fit and tighten guide pins -4-
.
> Tightening - torque 20 Nm (15 ftlb.)
- 11.3
Fit and tighten chain tensioner -3-
using screw-locking agent.
> Tightening - torque 85 Nm (63 ftlb.)
- 11.1
Install guide rail -1-
.
