Installing Pulley

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

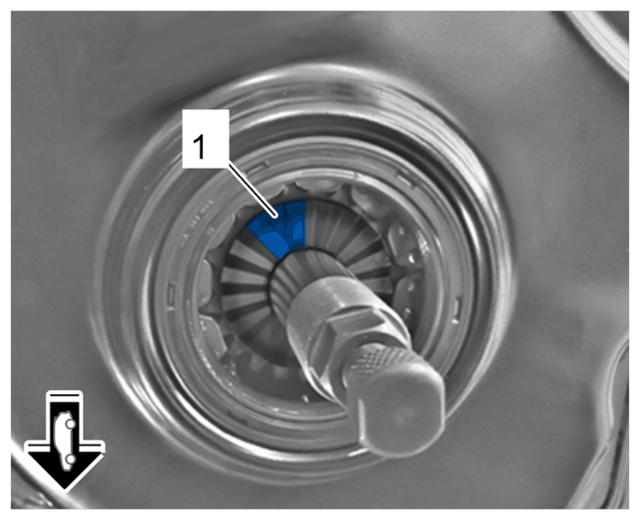

Tooth contour

1. 1.1  Coat sealing lip on the shaft sealing ring with engine oil.
2. 1.2  Fit pulley and make sure that the tooth contour -1-  is positioned correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

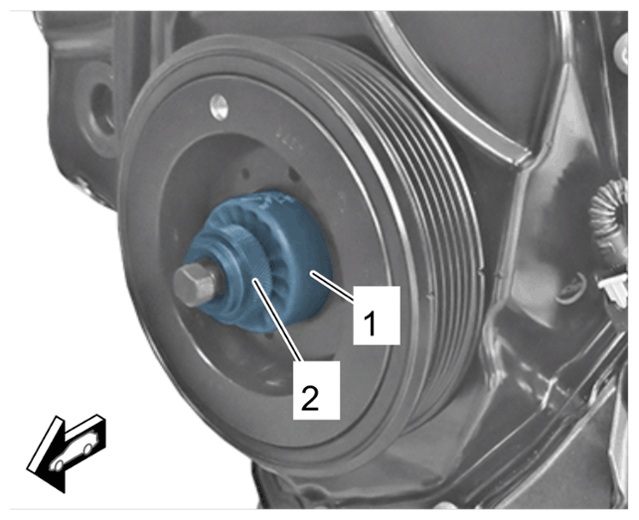

Special tool for sprocket

1. 2.1  Fit T10531/3 -1-  from the T10531 - assembly tool  inwards using the hexagon and secure with T10531/4 -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

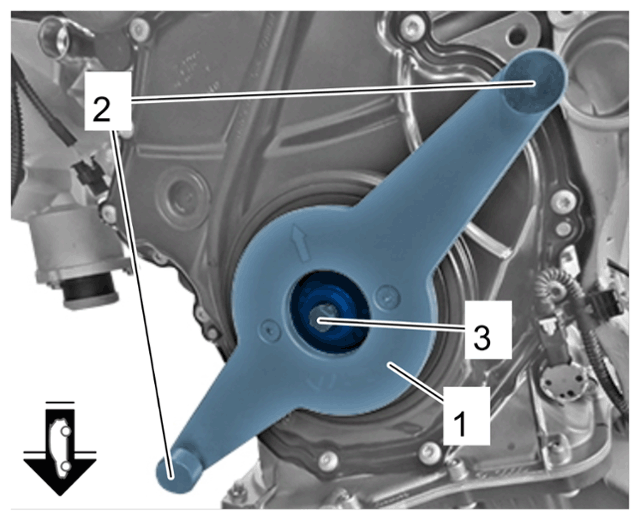

Special tool for pulley

1. 3.1  Fit T10531/1 -1-  from the T10531 - assembly tool  with the arrow pointing up.
2. 3.2  Fit knurled screws -2-  uniformly and tighten hand-tight.
3. 3.3  Loosen knurled screw on T10531/2  from the T10531 - assembly tool-3-  .
4. 3.4  Unscrew T10531/4  from the T10531 - assembly tool  .
5. 3.5  Unscrew T10531/2 -3-  from the T10531 - assembly tool  and remove it together with T10531/3.

Information

• The new screw for the pulley is supplied with a new O-ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

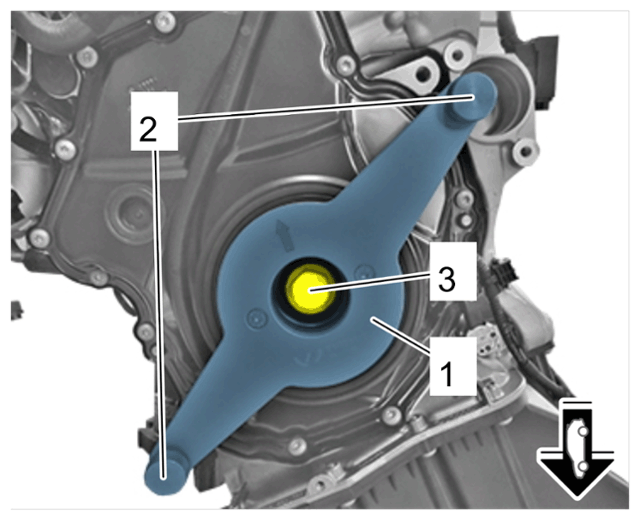

Screw on pulley

1. 4.1  Coat O-ring and new  screw for pulley -3-  with engine oil. Then, fit and tighten hand-tight.
2. 4.2  Loosen knurled screws -2-  and remove T10531/1 -1-  from the T10531 - assembly tool  .
3. 4.3  Counter the pulley using T10355 - counter-hold tool  and tighten screw.

   Check the strength of the screw before fitting!

4. 4.4  Screw 8.8:
   1. Step 1: Initial tightening 150 Nm (111 ftlb.)
   2. Step 2: Final tightening + 90 (67 ftlb.) °
5. 4.5  Screw 10.9:
   1. Step 1: Initial tightening 100 Nm (74 ftlb.)
   2. Step 2: Final tightening + 180 (133 ftlb.)°

> Initial - tightening 8 Nm (6 ftlb.)

> Final tightening + 45°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

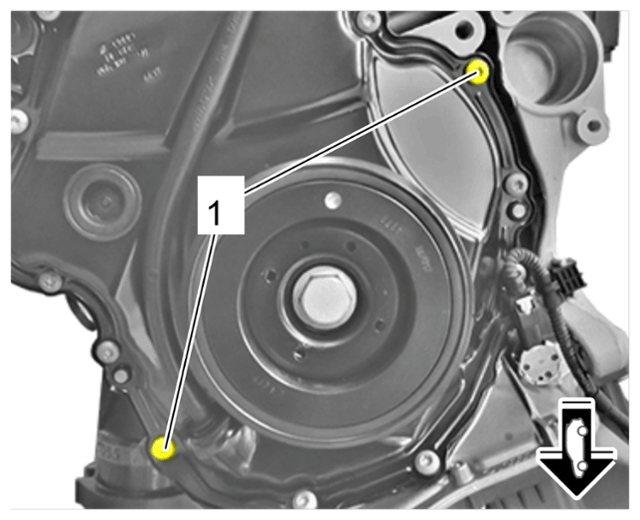

Screws for chain housing cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

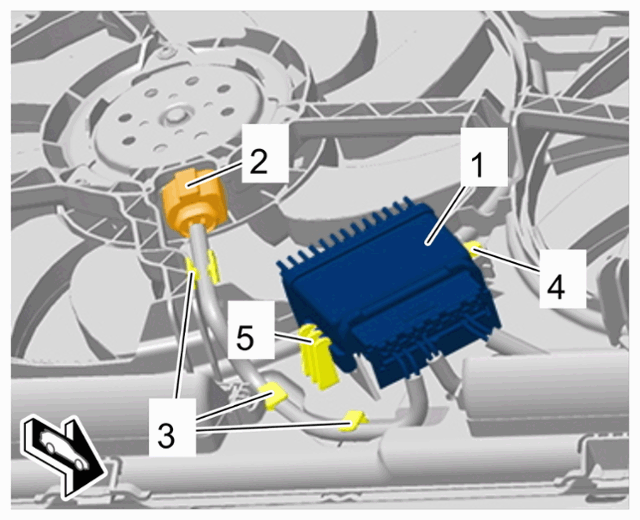

Fan control unit

1. 6.1  Position fan control unit in holder -5-  .
2. 6.2  Tighten screw -4-  .

   > Tightening - torque 2.5 Nm (1.75 ftlb.)

3. 6.3  Secure electric line to the brackets -3-  .
4. 6.4  Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

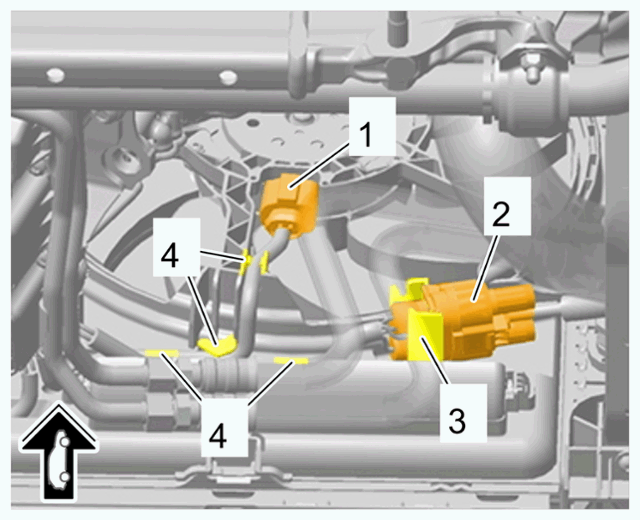

Electric plug connections for fan control unit

1. 7.1  Secure electric lines to the brackets -4-  .
2. 7.2  Attach electric plug connection -2-  to holder -3-  .
3. 7.3  Connect and lock electric plug connections -1 and 2-  .
