Removing Drive Plate

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  1. → Protect components from dirt and contamination.
  2. → Clean or replace dirty components.

1. Insert counter-hold tool 10-201 - bracket-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

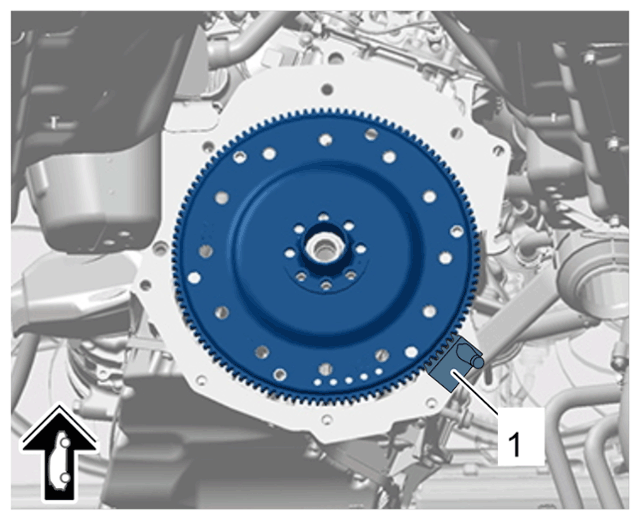

   Counter-hold tool on drive plate

   Information

   To prevent damage to the outer surface of the bearing flange on the drive plate, a multiple-tooth socket wrench with a shaft length of at least 40 mm must be used for loosening and tightening the screws.

2. Remove -1-  drive plate.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

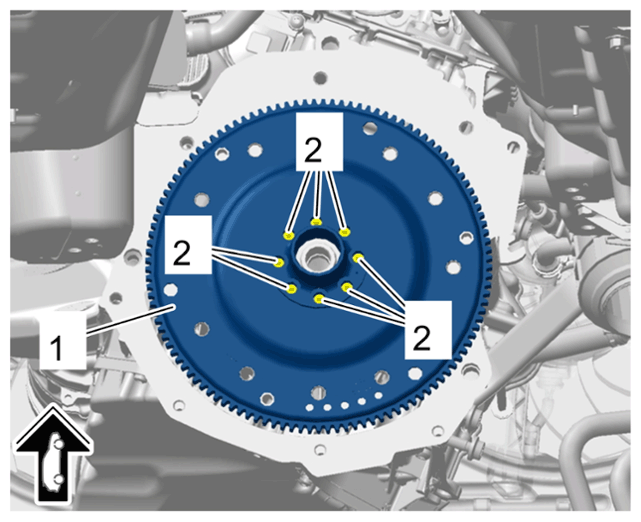

   Drive plate

   1. 2.1  Unscrew screws -2-  .
   2. 2.2  Remove drive plate -1-  .
3. Remove counter-hold tool 10-201 - bracket  .
