Tools And Materials: Notes

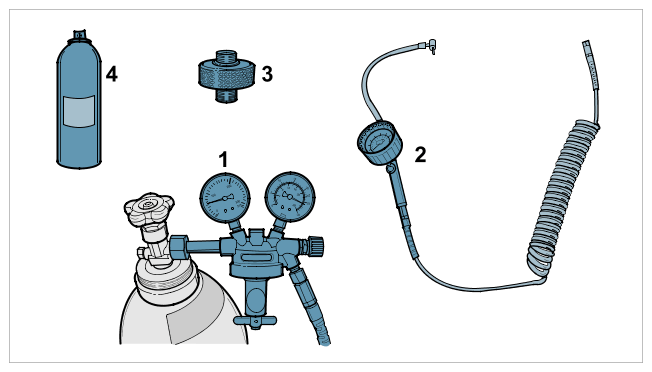

G15151260

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tools for leak test

1	Commercially available pressure gauge unit (pressure reducer)
2	> VAS 6231 - Air-Spring Strut Filling Unit (connection - between pressure reducer and adapter)
3	> V.A.G 1318 - K-Jetronic Tester (for - fitting on the fuel supply line)
4	Commercially available leak-locating spray

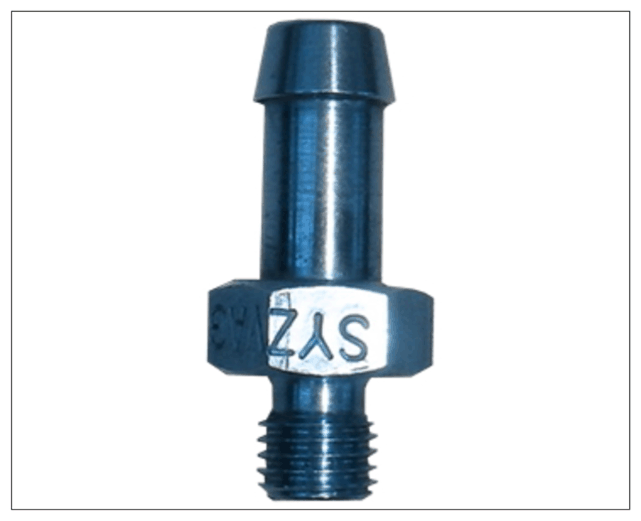

G15151261

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adapter VAG 1318/11

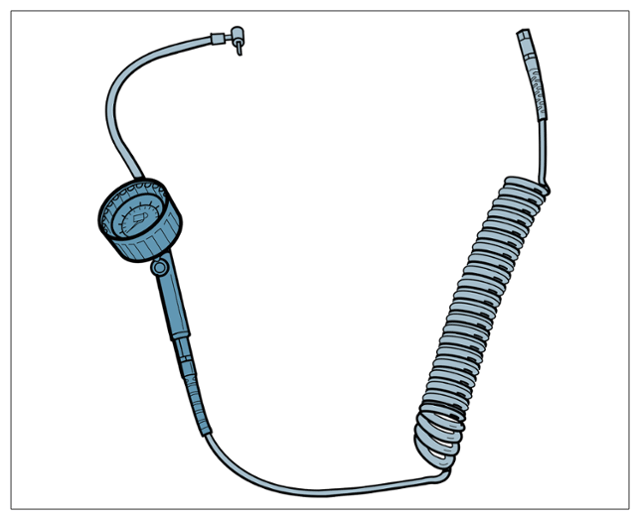

G15151262

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filling unit VAS 6231

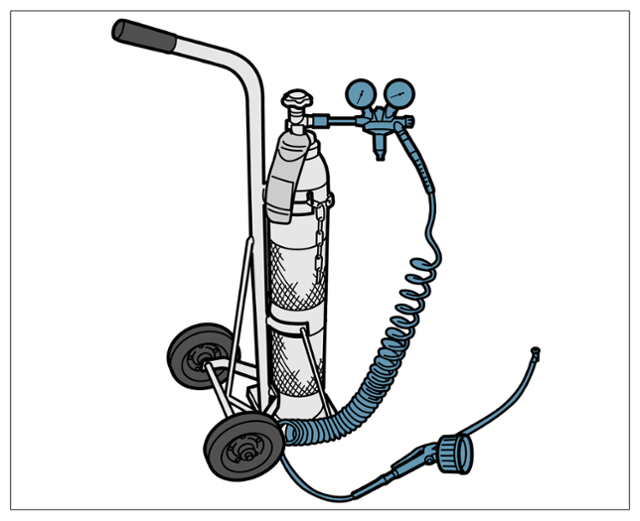

G15151263

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Test equipment setup
