Technical Values

Location Description Type Basic value Tolerance1 Tolerance2
The screws on the top of the holder of the distance measuring sensor control unit Position 3 Tightening torque 8 Nm

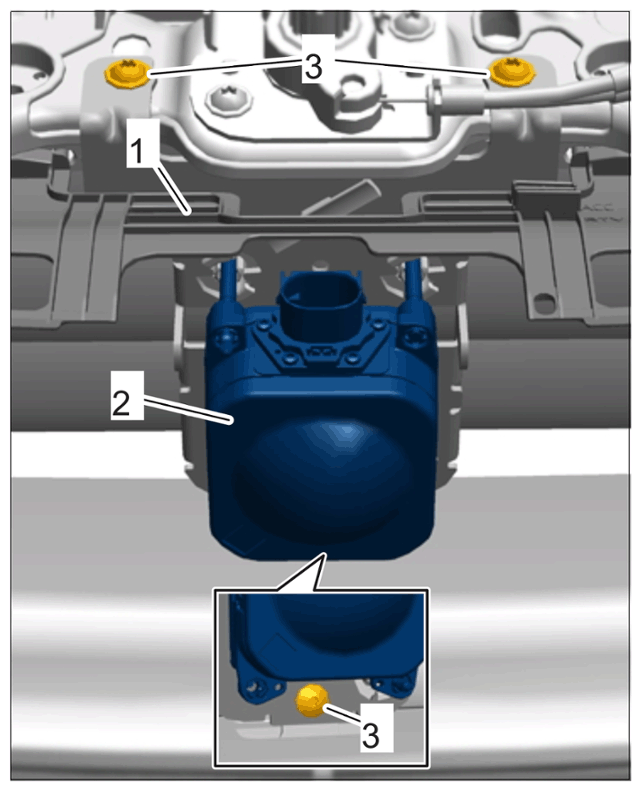

G15151649Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Distance measuring sensor control unit
The screws on the bottom of the holder of the distance measuring sensor control unit Position 3 Tightening torque 2.5 Nm
G15151650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Distance measuring sensor control unit
