Installing Generator

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

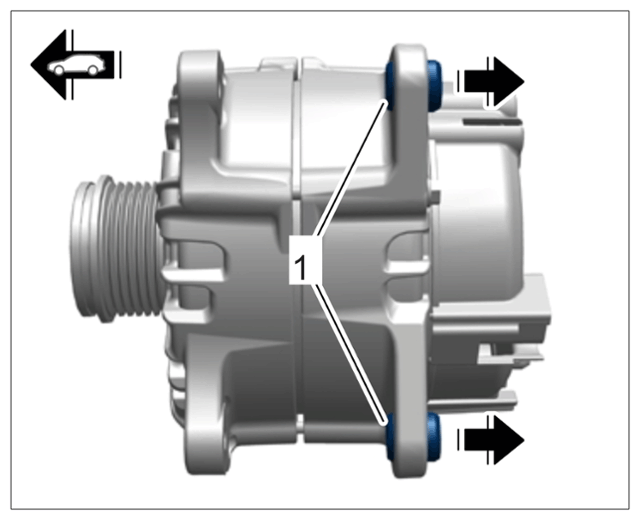

Generator bushes

• Before installing the new generator, tap the threaded bushes -1- out - by approx. 4 mm.

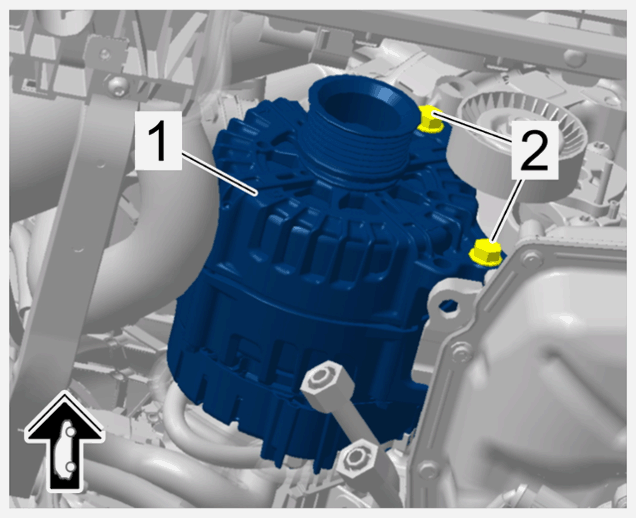

1. Install generator -1-  .
   1. 1.1  Position the generator -2-  .
   2. 1.2  Screw in and tighten screws -2-  .
      • Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Generator

2. Secure electric connections on the generator.
   1. 2.1  Position B+ line -3-  and screw on and tighten nut -2-  .
      • Tightening torque 20 Nm (15 ftlb.)
   2. 2.2  Connect cable plug -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

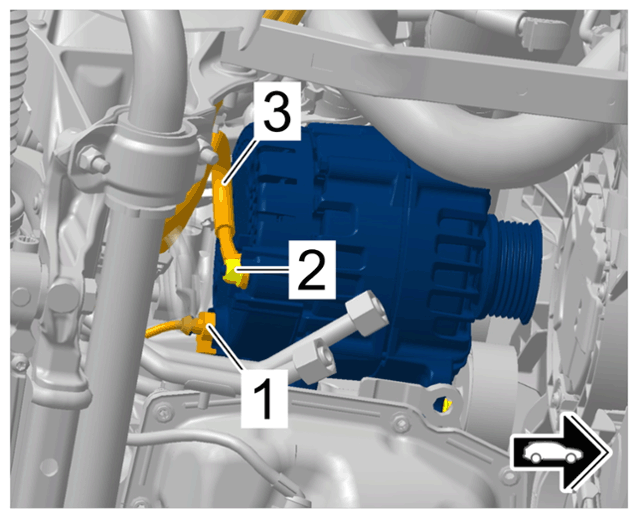

      Connections on generator
