Adjust Rear-Axle Camber

  1. Adjust camber at the rear axle -1-  at the upper control arm.

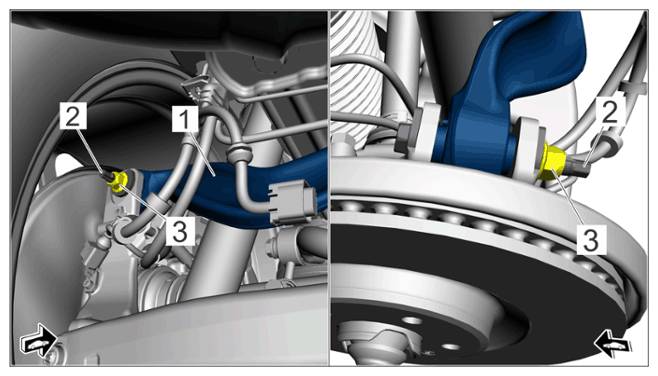

    G15156293Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camber adjustment on rear axle

    1. 1.1 Loosen nut -3-  on threaded joint for the upper control arm -1-  at the wheel side.
    2. 1.2 Turn the camber eccentric on the hexagon -2-  of the eccentric screw until the camber value of the wheel is in the target range.
    3. 1.3 Tighten the nut -3-  and counter at the hexagon -2-  .

      > Tightening - torque 95 Nm (70 ftlb.)

    4. 1.4 Check the camber value again.
