Removing Wheel Electronics

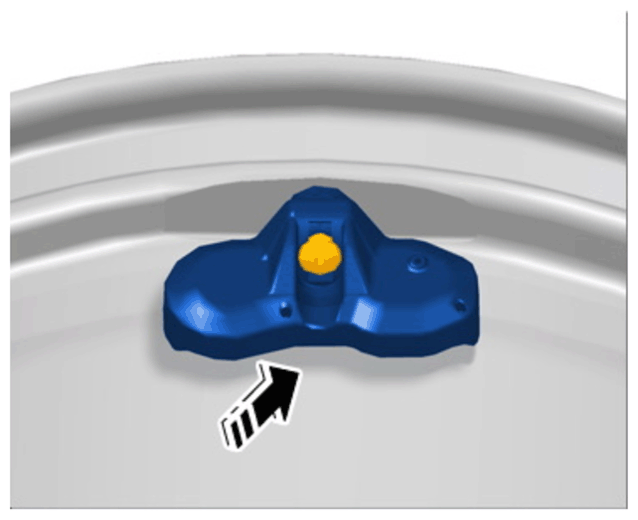

The wheel electronics unit -Arrow-
is located on the valve in the outer rim base.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Overview of wheel electronics

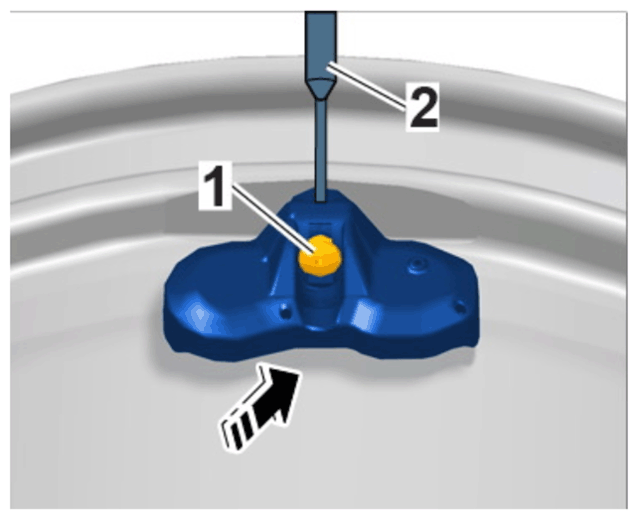

- Loosen screw -1-
for the wheel electronics -Arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Wheel electronics mounting
- 1.1 Counter in the bore at the valve foot using a steel pin (Ø approx. 1.8 mm) -2-
if necessary.
- Loosen union nut and remove valve.
