Installing Wheel Electronics
- When changing a wheelset or wheel, the data must be documented in the control unit. This is especially important when wheel positions have been interchanged.
- 1.1 For this purpose, always select the tyre type and tyre size in the instrument cluster under Tyre pressure/Tyre type.
- 1.2 The control unit then learns the wheel positions again while the vehicle is moving.
- Clean the valve bore very carefully (visual inspection).
Information
When replacing the wheel electronics:
- Always use completely new valves.
- Always use new bolts.
- Fit the wheel electronics unit loosely at the valve (do not tighten) and position it in the valve bore together with the new valve.
Information
- Counter at the new valve while fastening with an assembly pin (supplied with the new valve).
- This prevents the valve-end seal from turning and thus possible damage.
- Place the washer, which has been chamfered on both sides, from the outside, screw on the union nut and tighten.
>
- 4.1 Turn the hole on the valve foot until the enclosed mounting pin can be inserted.
Information
- Ensure the correct tilt angle of the valve with respect to the wheel electronics unit by pressing the wheel electronics unit slightly into the rim base.

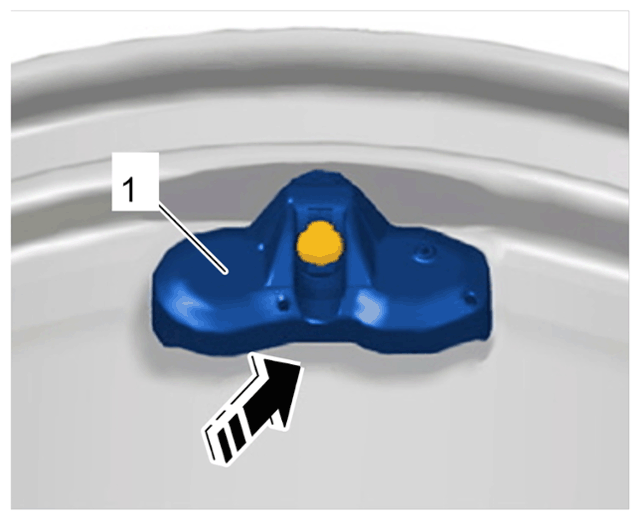

- Press wheel electronics unit -1-
slightly into rim base -Arrow-
.
Overview of wheel electronics
Information
- Carry out the screw on the wheel electronics unit/valve evenly and in one turn.
- Do not interrupt the tightening process.
- Remove the assembly pin after tightening the components.
Information
The wheel electronics must not come into contact with tyre mounting paste or solvent.
- Fit and tighten self-locking screw. The wheel electronics unit should now be lying evenly against the rim. > Torque - 4 Nm (3 ftlb.) (3 ftlb.)
Wheel electronics mounting
- 6.1 Pull off assembly pin.
When mounting tyres, ensure absolute cleanliness around the wheel electronics unit.
- 6.1 Pull off assembly pin.
