Installing Power-Steering Gear

NOTE: Water can leak in if sealing elements are damaged.

Component can become damaged or may not function.
1. Replace damaged sealing elements.
2. Check that sealing elements are fitted correctly.

Installation is performed in reverse order. Pay particular attention to the following:

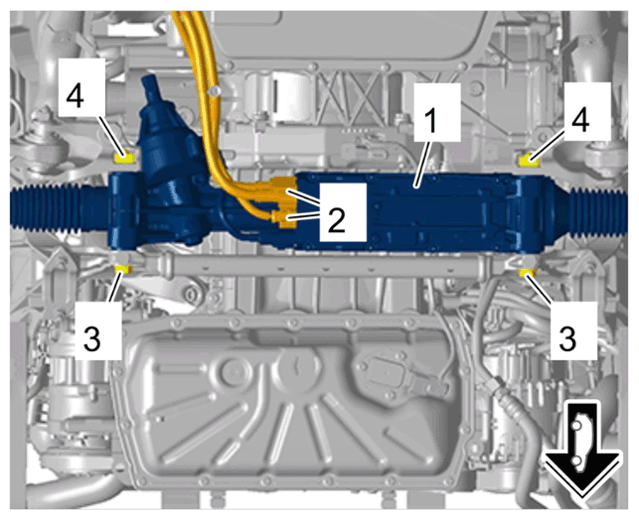

1.1 Replace screws -3- and square nuts -4- .

Tighten new screws for power-steering gear -3- .

> Initial - tightening 80 Nm (59 ftlb.)

> Final tightening + 180°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power-steering gear

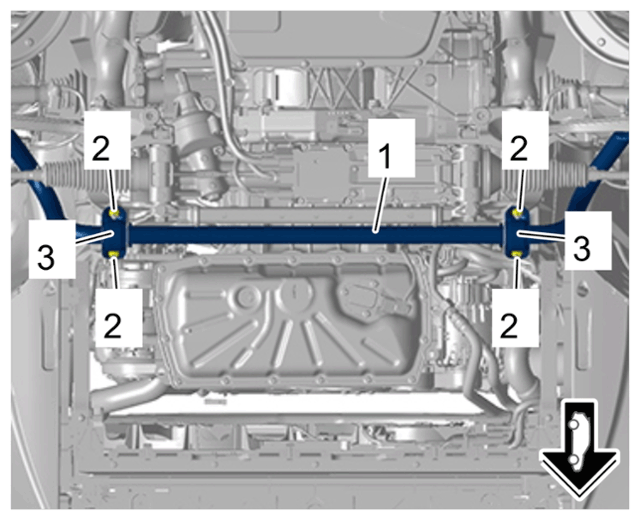

1.2 Tighten nuts on anti-roll bar clamps -2- .

> Tightening - torque 30 Nm (22.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar

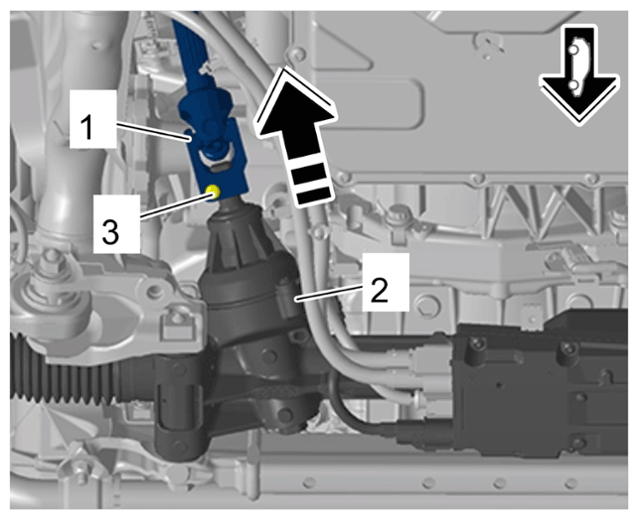

1.3 Replace screw on universal joint for steering column -3- .

Tighten new screw on universal joint for steering column -3- .

> Initial - tightening 20 Nm (15 ftlb.) > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Universal joint for steering column at the power-steering gear

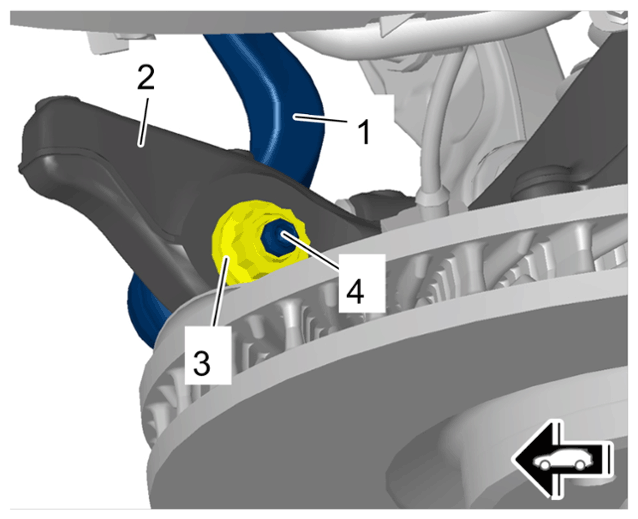

1.4 Replace nut on tie-rod ball -3- .
Tighten new nut on tie-rod ball -3- .

> Tightening - torque 100 Nm (74 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-rod ball on wheel bearing housing
