Removing Height Adjustment Control Unit

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
1. Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
2. Switch off electrical loads before disconnecting or removing them.

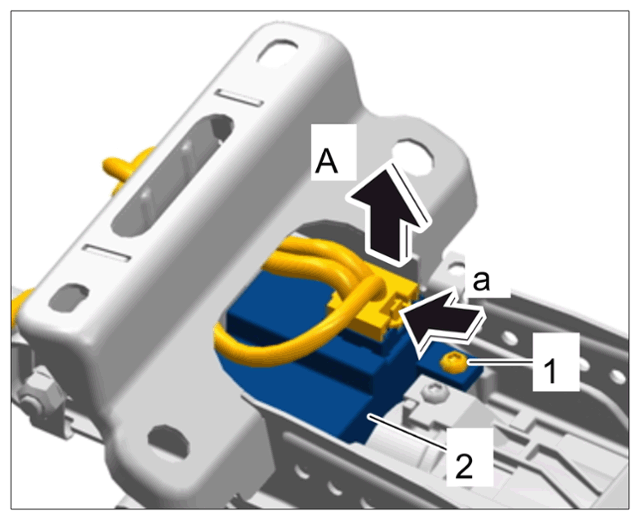

Release electric plug connection on height adjustment control unit -arrow a- and disconnect it -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Height adjustment control unit
1. 1.1 Unscrew fastening screw -1- .
2. 1.2 Lift up height adjustment control unit -2- and remove it.
